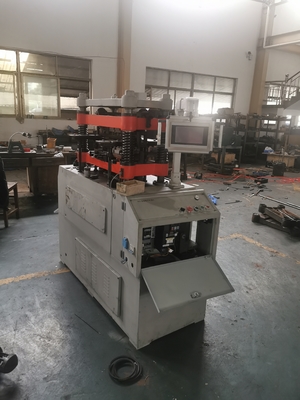

520mm fin width fin forming machine Fin Making machine Including Servo Cutting Machine and Feeder and Oil TANK

Product Description:

The 520mm fin width Fin Forming Machine is a high-speed radiator fin forming machine designed for efficiency and precision. This machine is equipped to handle Maximum fin height 12mm Variable frequency constant speed 25~ 125 Strokes per minute, making it ideal for mass production. The fin width options of 520mm provide versatility for various radiator sizes.

With 520mm fin width and the ability to work with fin material thickness of 0.1mm, this aluminum fin forming machine ensures durability and consistent results. The machine is designed to create fins with a height of 12 mm  meeting industry standards for radiator production.

Whether you are working on small-scale projects or large-scale manufacturing, this radiator fin forming machine offers reliability and precision. The automated features streamline the production process, increasing efficiency and reducing the margin of error. Its single-blade design ensures clean and accurate cuts, resulting in high-quality radiator fins every time.

Investing in the Three Phase 380V±10% 50Hz±2%  Automatic Fin Forming Machine Single Blade means investing in a reliable and high-speed solution for your aluminum fin forming needs. The machine's robust construction and user-friendly interface make it a valuable asset for any workshop or manufacturing facility. Upgrade your radiator production process with this advanced fin forming machine today.

Features:

• Compact structure, reasonable design, high precision equipment.
• Automatic lubrication system and oil circuit separation collection.
• Strong adaptability
• Easy and fast maintenance.
• The reducer is placed under the gearbox, the installation and maintenance is more simple and convenient, the reducer is changed from cycloidal pin wheel reducer to transmission more reliable helical gear reducer, with the flywheel, making the transmission more stable, bearing capacity strengthening, sprint speed can be further improved.

Technical Parameters:

Applications:

BCX finned forming machine mainly includes host seat, spindle, upper table, lower table, the two ends of the spindle is fixed in the host seat, thehost seat above the guide post and spring connected with the lower table, the upper table.The upper die is fixed below the upper workbench, and the lower die is fixed above the sliding block ofthe lower workbench.There are three cams on the main shaft, and the two ends of the CAM drive the pillar for vertical reciprocating motion, so as to drive the upper and lower table periodically for up and down reciprocating motion.The intermediate CAM drives the connecting rod to make the sliding block on the lower workbench move horizontally and reciprocally for feeding.

The structure mainly includes the following parts: main shaft transmission device, lower plate up and down moving device, upper plate up and down moving device, lower plate feeding device, column guide device, mold regulating device, hydraulic lubrication device, main electric control box.
