Aluminium 6.5-10 Tube Pitch Radiator Fin Machine for Customized Fin Tube Production Speed and Maximum 60m/min Cut-off Speed

Product Description:

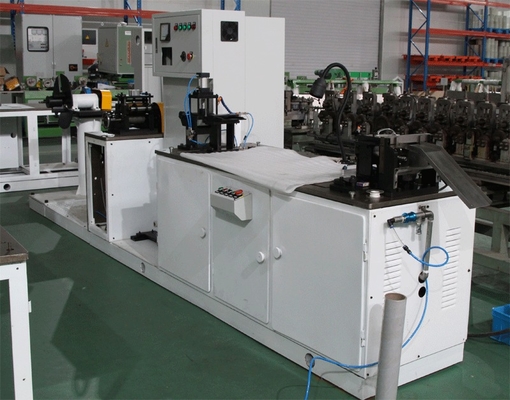

The Radiator Fin Forming Machine is a state-of-the-art equipment designed for efficiently producing aluminum fins for radiators. This machine is specifically engineered to meet the demands of the HVAC industry, offering precision and reliability in fin production.

Key specifications of the Radiator Fin Forming Machine:

- Blade thickness: 1.1mm

- Foil thickness: 0.08mm

- Fin material thickness: 0.08mm

- Fin width options: 26mm, 32mm, 36mm, 40mm, 48mm

- Fin height: 8.05±0.05mm

The Radiator Fin Forming Machine is equipped with advanced features to ensure accurate and consistent fin production. With a blade thickness of 1.1mm, this machine is capable of precise cutting of the fin material. The foil thickness of 0.08mm allows for the creation of thin and efficient fins that are ideal for radiator applications.

With fin width options ranging from 26mm to 48mm, the Radiator Fin Forming Machine offers versatility to cater to various radiator designs and specifications. The fin height of 8.05±0.05mm ensures uniformity in the fins produced, meeting quality standards for heat transfer efficiency.

Designed as an Aluminium 6.5-10 Tube Pitch Radiator Fin Machine, this equipment is optimized for the production of fins that are compatible with radiators utilizing tube pitches within the specified range. The machine is capable of customizing fin tube dimensions to meet specific requirements, making it a versatile solution for radiator manufacturers.

Overall, the Radiator Fin Forming Machine is a reliable and efficient solution for producing high-quality aluminum fins for radiators. Its precision cutting capabilities, along with customizable fin dimensions, make it a valuable asset for HVAC industry professionals seeking to enhance the performance of their radiator systems.

Features:

• Product Name: Radiator Fin Forming Machine
• Processing speed: Maximum 130 M/min
• Fin wave distance: 3.2-3.5mm
• Fin height: 8.05±0.05mm
• Window opening Angle: 30°±2°
• Blade thickness: 1.1 Mm

Technical Parameters:

Applications:

Sunhope's Radiator Fin Forming Machine is a versatile and efficient solution for various product application occasions and scenarios. Designed and manufactured in Guangdong, China, this machine is built to handle different fin material thicknesses, with a focus on 0.08mm thin materials. The processing speed of up to 130 M/min ensures high productivity in a variety of production environments.

The machine's blade thickness of 1.1mm, combined with the available fin widths of 26, 32, 36, 40, and 48mm, allows for precise and customizable fin forming. The window opening angle of 30°±2° further enhances the flexibility of the machine, making it suitable for a range of applications.

Whether it's the production of automotive aluminum radiator fins or other fin-related products, Sunhope's Radiator Fin Forming Machine is a reliable choice. The machine's features, such as the Flat Fin Machine Multi Hobs and AC220V 1.5 Tons Automatic Fin Forming Machine Single Blade, ensure high-quality results with every use.

With its user-friendly Touch Screen Operation and compatibility with 220V power supply, this machine offers convenience and efficiency in operation. The ability to handle materials with precision and speed makes it an ideal choice for industries that require 0.08Mpa 220V Aluminium Fin Press Machine for various applications.
