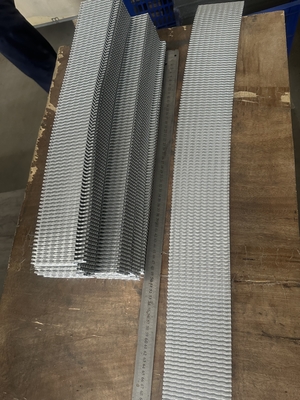

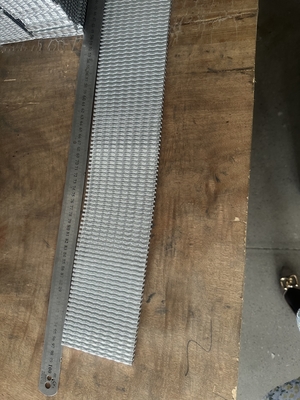

Bar Plate Fin forming machine for Bar Plate products Max Fin Width 300mm 12mm Max Fin Height

Product Description:

The Radiator Fin Forming Machine is a high-speed production equipment designed for efficiently creating aluminum fins for radiators. With a processing speed of up to 25-120 M/min, this machine is ideal for mass production of fins for various applications.

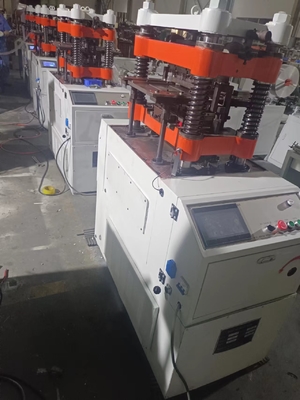

BCX finned forming machine mainly includes host seat, spindle, upper table, lower table, the two ends of the spindle is fixed in the host seat, the host seat above the guide post and spring connected with the lower table, the upper table.

The wave pitch adjustment is changed from stepless adjustment to stepless adjustment, and greatly widened up and down adjustment range (2-20mm).

The wave pitch adjustment is changed to stepless adjustment, which can reduce the excess stroke ofthe pendulum rod as far as possible, reduce the impact and noise, the machine runs more smoothly, and the running speed can be increased more.

Features:

• The transmission spindle is set in the center at the bottom of the fuselage, the transmission system is simplified, the transmission force is balanced, the structure and transmission are stable, and the machine tool accuracy is improved.The CAM is immersed in oil and lubricated well.
• The reducer is placed under the gearbox, the installation and maintenance is more simple and convenient, the reducer is changed from cycloidal pin wheel reducer to transmission more reliable helical gear reducer, with the flywheel, making the transmission more stable, bearing capacity strengthening, sprint speed can be further improved.
• Automatic lubrication system and oil circuit separation collection.The lubrication system ofthe main engine automatically circulates lubrication to reduce the lubrication failure ofthe equipment.
• Automatic recycling of mechanical oil in the main shaft box.The volatile oil in the oil tank will be collected separately and will not flow into the main shaft box ofthe special aircraft.Improve the mechanical accuracy and life.
• In order to meet the needs of different wave distances in sprints, the feeding device ofthe lower plate has been improved.
• Wave pitch, can be stepless adjustment of the middle swing rod stroke, fin molding more convenient and reliable.
• Reasonable structure design can be adapted to various processing molds, to process fin of different shapes and specifications.

Technical Parameters:

Applications:

The Sunhope Radiator Fin Forming Machine is a high-speed machine designed for forming radiator fins with precision and efficiency. With a place of origin in Guangdong, China, this machine is built with top-quality materials and advanced technology to ensure reliable performance.

The machine is equipped with cutting-edge features with 300mm Maximum fin width.

One of the key highlights of this machine is its processing speed, which can reach a maximum of 130m/min. This makes it suitable for large-scale production environments where speed and efficiency are crucial.

The Sunhope Radiator Fin Forming Machine is versatile and can accommodate a range of fin widths 300MM.
