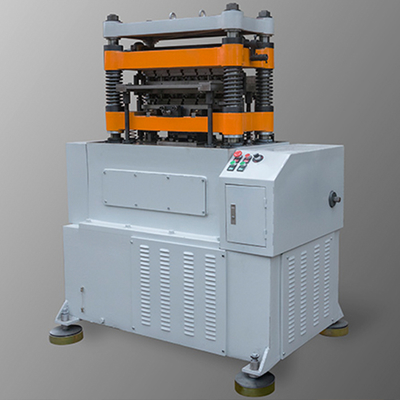

300mm Fin Width Fin forming machine Fin Press Machine With 300 Servo cutting machine 25-120 stroke per minutes

Product Description:

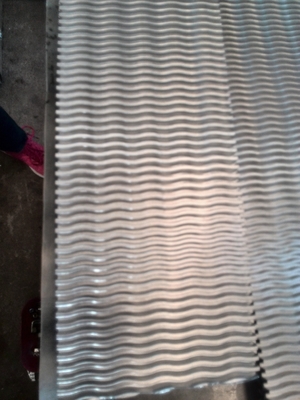

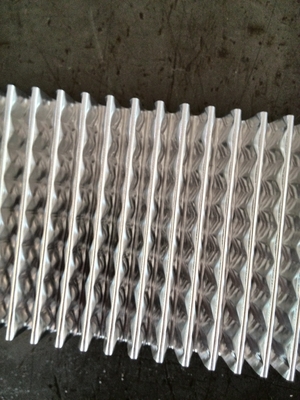

The fin forming machine produced by our company is a special processing equipment for processing the key components of heat exchangers - heat transfer fins. Compact heat exchanger products composed of such heat transfer fins have been increasingly widely applied in many fields such as automobiles, ships, air conditioners, compressors, construction machinery, mining machinery, aviation, military industry and hydraulic oil cooling industry.

The formed products produced by our company have the following advantages compared with similar products:

1. The main shaft is centered. Placing the main shaft at the center position can reduce the number of force transmission components and thereby lower the loss during the force transmission process. At the same time, it can improve the accuracy of machine tools.

2. High precision. The flatness of the limit positions of the upper and lower die tables and the flatness during the movement of the die tables are both higher than those of similar products, thus ensuring the stable performance of the machine tool.

3. Automatic lubrication system. It is designed with a unique automatic lubrication system to reduce machine tool wear.

4. Stepless adjustment. Achieve stepless adjustment and break through the limitation of few speed adjustment gears in traditional mechanical systems.

5. Compact structure and convenient operation. Optimize the traditional structure to make it more reasonable and the operation more convenient. A unique mold height mechanism has also been designed, enabling one person to easily adjust the mold.

6. High efficiency, low power consumption and stable performance. The improvement in precision, the reduction in wear and the optimization of structure have enhanced the overall efficiency of this machine tool and made its performance more stable. When the stamping is sufficient, this machine adopts a 3KW motor, thereby reducing power consumption and saving costs.

7. Easy to maintain and low maintenance cost. The optimization of the structure makes the components of the machine tool the most streamlined, thus facilitating maintenance and reducing maintenance costs.

8. Structured design. Structured design enables the replacement of various processing molds as needed to process fins of different specifications and shapes.

Features:

• Drive spindle lower
• Improvement of transmission mode.
• Compact structure, reasonable design, high precision equipment.
• Automatic lubrication system and oil circuit separation collection.
• Strong adaptability
• Easy and fast maintenance.

Technical Parameters:

Applications:

Sunhope's Radiator Fin Forming Machine is a versatile and high-quality product designed for various applications in the manufacturing industry. With its origin in Guangdong, China, this machine is built to deliver exceptional performance and efficiency.

BCX finned forming machine mainly includes host seat, spindle, upper table, lower table, the two ends of the spindle is fixed in the host seat, thehost seat above the guide post and spring connected with the lower table, the upper table.The upper die is fixed below the upper workbench, and the lower die is fixed above the sliding block ofthe lower workbench.There are three cams on the main shaft, and the two ends of the CAM drive the pillar for vertical reciprocating motion, so as to drive the upper and lower table periodically for up and down reciprocating motion.The intermediate CAM drives the connecting rod to make the sliding block on the lower workbench move horizontally and reciprocally for feeding.

Whether it's for automotive radiator production or other industrial applications, Sunhope's Radiator Fin Forming Machine stands out as a reliable and efficient solution. Its robust construction, precise blade thickness of 1.1mm, and customizable fin width options make it a valuable asset for businesses looking to enhance their manufacturing capabilities.
