450mm Fin width PLC controlled servo drive Radiator Fin Forming Machine with 0~25 times /min Feed frequency 0~4000 mm/min Feed speed

  • 450mm Fin width PLC controlled servo drive Radiator Fin Forming Machine with 0~25 times /min Feed frequency 0~4000 mm/min Feed speed
  • 450mm Fin width PLC controlled servo drive Radiator Fin Forming Machine with 0~25 times /min Feed frequency 0~4000 mm/min Feed speed
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1 set
Price negotiable
Packaging Details wooden case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10 set/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fin Width 450mm Drive Mode PLC Controlled Servo Drive
Feed Speed 0~4000 Mm/min Feed Frequency 0~25 Times /min
Motor Power 0.4kw (servo Motor) Use Power Supply Three-phase 380V±10% 50Hz±2%
Number Of Fins 1 Variable Frequency Constant Speed 25~ 125 Strokes Per Minute
Highlight

450mm PLC servo radiator fin machine

,

radiator fin forming machine with feed speed

,

PLC controlled fin forming machine with warranty
Leave a Message
Product Description

Product Description:

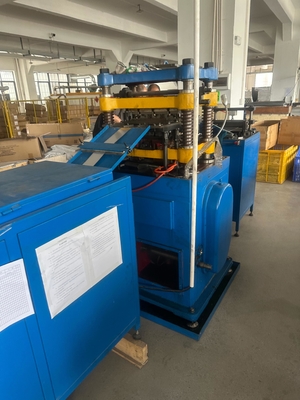

The structure mainly includes the following parts: main shaft transmission device, lower plate up and down moving device, upper plate up and down moving device, lower plate feeding device, column guide device, mold regulating device, hydraulic lubrication device, main electric control box.

The lubrication point ofthe machine is fully automatic lubrication

Spindle CAM immersed in oil tank lubrication

Upper sliding body seat pin shaft, guide column and guide column sleeve through the oil pump lubrication.

The return oil is collected through the oil jacket and flows back through the pipe to collect the tank.

The oil on the fin flows back to the volatile oil collection box through the collection hole of the cover to realize different oil isolation recovery.

Features:



  • Compact structure, reasonable design, high precision equipment.
  • Drive spindle lower
  • Automatic lubrication system and oil circuit separation collection.
  • Easy to debug
  • In order to meet the needs of different wave distances in sprints, the feeding device ofthe lower plate has been improved.



Technical Parameters:

Technical Parameter Value

Material strip number

 1

Fin width

 450 mm

Drive mode

Motor drive

The inner diameter of the material belt cylinder

75mm~ 150mm

Feed speed

0~4000 mm/min

Feeding frequency

0~25 times /min

Use power supply

Three-phase 380V

Maximum fin height

 12mm

Vertical stroke of machine tool

 14mm


Applications:

*The transmission mode between the transmission reducer and the main shaft is changed from direct transmission to multi-wedge belt flexible

transmission to reduce the damage to the machine due to poor

alignment.Reducer with more bearing capacity of the helical gear reducer.

* The main shaft is equipped with a flywheel, which makes the transmission more stable by the energy storage function of the flywheel.

* Set a separate debugging reducer, and equipped with electromagnetic clutch device, debugging more simple and easy, and more reliable.

 According to the fixed wave number for cutter feeding, meet the production offin continuous die, servo motor control drive wheel drive fin feed, reach the specified fin length or wave number, PLC control cutter cutting.

 Driving wheel height adjustment mode, can be adjusted by single head screw, also can be adjusted by hand wheel overall.
