380V 50HZ Serrated Fin Forming Radiator Making Machine 60 Times / Min

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10/set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Fin Forming Power Supply 380V/50HZ Fin Type Louver, Serrated
Maximum Cut-off Times 60 Times /min Fin Forming Accuracy ±0.1mm
Fin Forming Method Roller Forming Machine Model Radiator Fin Forming Machine
Fin Thickness 0.2-0.3mm Fin Forming Die 1 Set
High Light

Serrated Fin Forming Radiator Making Machine


60 Times / Min Radiator Making Machine

Leave a Message
Product Description

380V/50HZ Serrated Fin Forming Radiator Machine

Product Description:

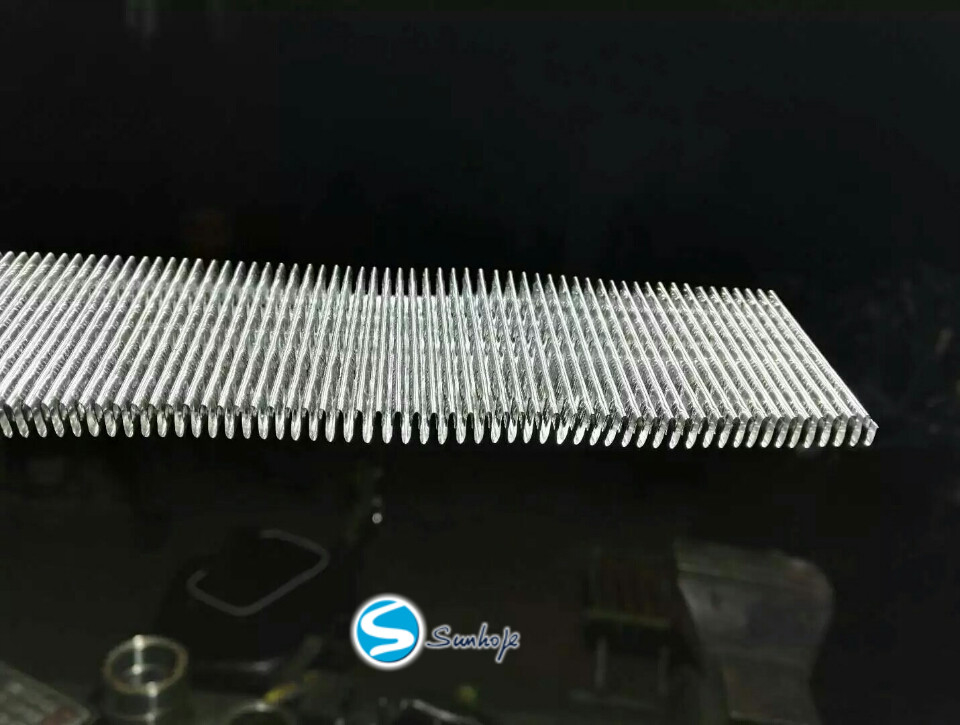

The Radiator Fin Forming Machine is a special aluminum fin forming machine for radiator. It adopts roller forming method with fin material of aluminum and copper, various fin type like louver and serrated. The fin forming power supply is 380V/50HZ, and die is 1 set. The machine is suitable for 1.5mm-2mm tube thickness aluminum fin forming. It is widely used for car radiator & condenser fin making.



  • Product Name: Radiator Fin Forming Machine
  • Fin Thickness: 0.2-0.3mm
  • Fin Forming Method: Roller Forming
  • Fin Height: 5-8mm
  • Maximum cut-off times: 60 Times /min
  • Fin Forming Motor: 2.2KW
  • 8mm fin height fin forming machine
  • Car Aluminum Radiator & Condenser Fin Making Machine

Technical Parameters:

Item Specification
Fin Forming Method Roller Forming
Fin Forming Die 1 Set
Fin Forming Power Supply 380V/50HZ
Fin Forming Accuracy ±0.1mm
Fin Thickness 0.2-0.3mm
Fin Material Aluminum, Copper
Maximum cut-off times 60 Times /min
Fin Pitch 6.5-10mm
Fin Forming Motor 2.2KW
Fin Height 5-8mm
Power Supply AC220V
Tonnage 1.5 Tons
Operation Automatic
Blade Single
Fin Height 8mm
Pressure 0.8Mpa
Voltage 220V
Material Aluminium
Fin Machine Flat Fin Machine Multi Hobs


Sunhope Radiator Fin Forming Machine:

The Sunhope Radiator Fin Forming Machine is designed and manufactured in Guangdong, China. This machine has a fin forming accuracy of ±0.1mm and comes with a fin forming die and a 2.2KW fin forming motor. It is capable of cutting off up to 60 times per minute, making it ideal for high speed production. It is also able to work with 0.8Mpa, 220V and aluminium fins, and can be used to create flat fins with multi hobs. The maximum height that can be achieved is 5mm and the maximum tube thickness is 1.5mm. This machine can be used for both AC220V and 1.5 tons of automatic fin forming with a single blade.



Customized Service for Sunhope Radiator Fin Forming Machine

Brand Name: Sunhope

Place of Origin: Guangdong,China

Fin Pitch: 6.5-10mm

Fin Thickness: 0.2-0.3mm

Machine Model: Radiator Fin Forming Machine

Fin Forming Die: 1 Set

Fin Height: 5-8mm

Features: Automotive Aluminum Radiator Fin Forming Machine with Touch Screen Operation, AC220V 1.5 Tons Automatic Fin Forming Machine with Single Blade, High Speed Radiator Fin Forming Machine with 5mm Height and 1.5mm Tube Thickness.


Support and Services:

Radiator Fin Forming Machine Technical Support and Service

We offer comprehensive technical support and service for our Radiator Fin Forming Machine. Our team of experts is available to answer any questions or concerns you may have while using the machine.

Our technical support team has extensive experience troubleshooting and resolving any issues arising from the use of the Radiator Fin Forming Machine. We also provide regular maintenance and service to ensure that the machine is functioning properly and efficiently.

We also offer a range of spare parts and accessories for the Radiator Fin Forming Machine, such as cutting blades, forming dies and additional components.
