Rated Power 125KW Aluminum Brazing Furnace 380v Four Zone Heating 50Hz 4 Zones

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price 80000 - 100000 dollars
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 1set/3 month
Product Details
Rated Power 125kw Transmission Method Manual Delivery
Working Size 800*500*1200 Rated Temperature 650℃
Gas Protection High Purity Nitrogen Temperature Control Controlled By Japan Shimaden PID Regulation
Leave a Message
Product Description

Rated Power125KW Aluminum Brazing Furnace 380v Four Zone Heating 50Hz





Aluminum Brazing Furnace introduction

The equipment is equipped with improved technical performance on the basis of the original box-type heat treatment furnace, which is suitable for brazing of automobile air conditioning pipe belt type two and tube belt oil cooler, and aluminum small intercooler. The furnace is a cyclic brazing furnace. The working size is 800×500×1200 (mm), and the heating method adopts top, bottom, two sides and four sides heating.



The furnace body is welded by section steel and steel plate, the inside is pressed to release the furnace gall, the outer layer has a heating element, the heating element is heated by OCr25Al5 resistance wire, and then the outer layer has a lightweight refractory brick to make the furnace, the outside of the furnace is a refractory insulation material (using Shandong Luyang aluminum silicate throwing blanket), the appearance is a steel plate, the heating element is distributed on the top and bottom of the furnace gall, the left and right walls, and the layout is reasonable. Furnace gallbladder.The furnace bladder is made of 1Cr18Ni9Tiδ(Ti type austenitic stainless steel)=6mm, welded and formed by stainless steel plate, the space size in the furnace bladder is 1000×700×1400mm, the working size is 800×500×1200mm, the bottom surface is flat, and the upper part is arc-shaped.



Aluminum Brazing Furnace quick details





                         Rated power

125KW

Rated voltage

380V

frequency

50HZ

Number of phases

3

Rated temperature

650

Connection method

Y·Y·Y·Y

Number of heating zones

4 Zones

Temperature control

It is regulated and controlled by Nihon Shimaden PID

Working size

800×500×1200

Heating element

Resistance wire heating

Delivery method

                                  Manual pulling





Aluminum Brazing Furnace Feature

1. Increase productivity

2. Low investment cost

3. Suitable for small batch production

4. Small size

5. The workflow is simple

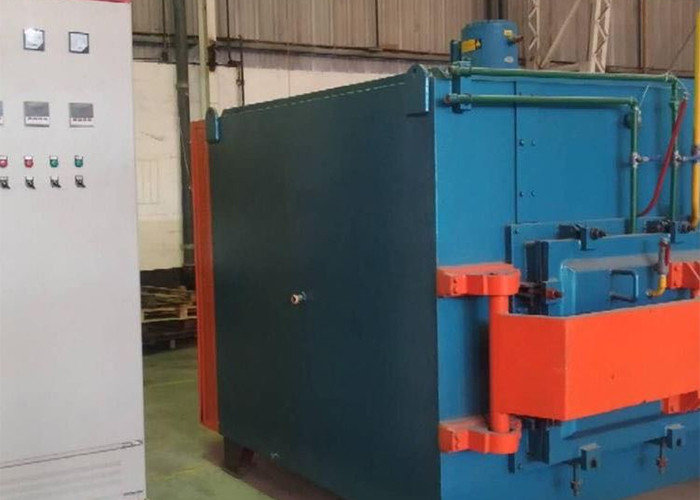

Rated Power 125KW Aluminum Brazing Furnace 380v Four Zone Heating 50Hz 4 Zones 0



Rated Power 125KW Aluminum Brazing Furnace 380v Four Zone Heating 50Hz 4 Zones 1



FAQ

1. Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.

2. How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A. The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B. The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.

3. How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.
