Car Tank C Plastic Radiator Making Machine 220V Radiator Clinching Machine

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Radiator Core Height 100-800mm Header Plate Width 30-120mm (customized)
Suitable Max. Teeth Numbers 100 (customized) Air Source 0.8Mpa
Radiator Core Width 350-950mm Max Head Plate Length 20-1000mm
High Light

Plastic Radiator Making Machine


Car Tank C Radiator Making Machine


800mm Core Radiator Making Machine

Leave a Message
Product Description

Radiator Clinching Machine Car Plastic Tank C Plastic Radiator Making Machine 220V



Product features:

1) The long side header clinching mechanism is moved by the hydraulic power.

2) The machine can crimp the header at 4 sides by one cycle. The hydraulic power is much more stable.

3) The equipment can have dodge moves and step-forward moves.

4) The company also supplies semi-automatic separate side radiator clinching machine, manual clinching machine, fast type radiator clinching machine, hydraulic radiator clinching machine, etc.

5) The radiator clinching machine is PLC controlled, and the crimping program is set up through the touch screen.

6) The touch screen of the clinching machine can indicate the working status, and the control system stores radiator crimping parameters.



Technical Parameters of Radiator Tank Clinching Machine
Radiator height
Radiator max width
Crimping way
stepping way
Production capacity
about 24 cores per hour
Driving force
servo + pneumatic
Crimped teeth quantity
max 100 pieces
Total power
Voltage grade
AC-220V; 50Hz
Overall dimension
2200×2000×1900mm (L*W*H)
3.2 Ton



Product Application

This servo type plastic tank clinching machine is used to handle products of various specifications. The crimping machine is divided into the long-side header crimping mechanism and end crimping mechanism. The radiator clinching machine is also called as aluminum radiator crimping machine. The high quality plastic tank clinching machine for 4 Sides is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate.

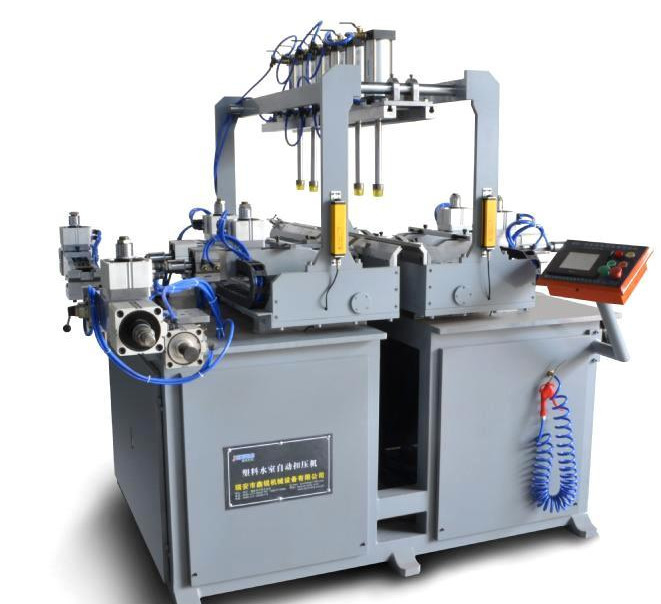

Car Tank C Plastic Radiator Making Machine 220V Radiator Clinching Machine 0



About us:

Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.

If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service and best price.




1.How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.

2.Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.

3..How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.
