Aluminum Fins 2mm Tube Thickness Radiator Fin Making Machine Multi - Combined Blade

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Fin Thickness 0.08mm Weight 800kg
Voltage, Power 220V/50Hz,2.5kw Blade Single Or Multi-combined
Fin Pitch 1.6~5.0mm Foil Feeding Speed 0-100m/min
High Light

Aluminum Radiator Fin Making Machine


Multi Combined Radiator Fin Making Machine


2mm Thickness Fin Tube Machine

Leave a Message
Product Description

Fin tube Machine for aluminum fins 2mm Tube Thickness Radiator Fin Making Machine


Product descriptions:

        The automatic car radiator fin making machine adopts tooling quick changeable design for rolling different fins.

      The fin rolling machine is equipped with the following devices: decoiler, tensioning device, feeding, micro oil spray lubrication, fin

forming, correction and cutting function. The machine is designed with protections such as strip run-out detection, blockage detection,cutting fault indicator, fin forming unit overloading protection, and fault indication light.



Products quick details:

Fin Type: Radiator Fin production efficiency 60sec.
Workstation 1 Number of preset models Non.
Machine weight 800kg Programmable yes
warranty 12 months shape unregular
mould can customise after-sale service yes
Fin Height: 8mm brand name SUNHOPE
Fin Thickness: 0.08mm Speed: 100 M/min
Core Row Number: 1-4 Rows Voltage, power 220V/50Hz,2.5kw
design style can customise running speed adjustable
Driving mode Servo pneumatic


Product advantages:

1. The fin forming roller is changeable, and different fin models can be produced on the same machine.


2. The minimum fin thickness for the wavy fin is 0.07mm which saves the customer’s cost.


3. The radiator fin making machine can be equipped with our patent lubrication system. The micro spray lubrication system can save about 60% lubrication.

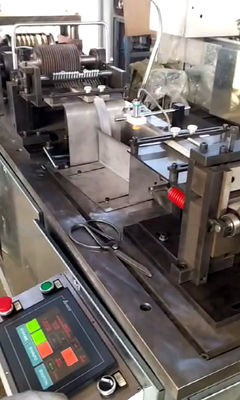

Aluminum Fins 2mm Tube Thickness Radiator Fin Making Machine Multi - Combined Blade 0



About us:

    Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




1.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.



2.Does it can change the hob?


The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
