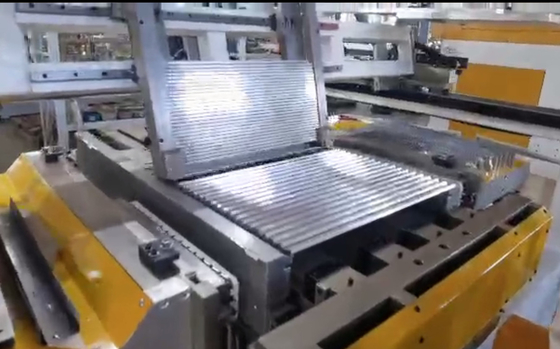

Radiator Core Assembly Machine Radiator Core Builder Machine Can do Core Thickness 16,18,22,26,32,36,40,48,56mm



Product descriptions of Radiator Core Builder Machine:

The radiator core assembly machine is used for assembling auto radiator cores.

The radiator core builder machine has the advantages of stable and reliable working prformance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled condenser core has a high assembling accuracy and a good apperance, which ensures a better brazing effect in the brazing furnace.



Procedure of Radiator Core Builder Machine:

   Automotive automobile radiator side plate fin tube install assembly machine is highly reduce the manpower and working efficencyfor the radiator install assembly making. Automatic to line the flat tubes , Put them in order. And insert the fins by manual. Themachine is customized as customers drawings.

To assemble flat tube, fin, header plate, side plate and brazing fixture into charge air cooler core.

    Equipment consists of pneumatic system, electrical system, servo system etc. and is with good appearance and precise assembly dimension. It enables for fast model change, easy operation and also is with automatic tube end flaring function.



Product parameters of Radiator Core Builder Machine:

Radiator core assembled per time: 1 piece
Center-to-center distance: decided by the customer
Flat tube length: 350-800mm;
Flat tube quantity: 75 pieces or more (decided by the customer)
Flat tube width: 20-32mm
Flat tube layer: 1-2 layers (decided by the customer)
Assembling accuracy: diagonal line size differrence kept within ±1.5mm
Total power: 5.5kw
Assembling time per core: about 60 seconds
Equipment weight: 1.8T

Equipment overall dimension (for reference): 3200 mm×3000 mm×1600 mm

Radiator Core Assembly Machine 16 18 22 26 32 36 40 48 56mm Thickness 0


About us:

 Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.



FAQ:

1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.







2.What’s the requirements for assembling the head plate of automatic core building machine?

The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.

ne.
