Automatic Radiator Wavy Fin Making Machine High Cutting Accuracy

  • Automatic Radiator Wavy Fin Making Machine High Cutting Accuracy
  • Automatic Radiator Wavy Fin Making Machine High Cutting Accuracy
  • Automatic Radiator Wavy Fin Making Machine High Cutting Accuracy
  • Automatic Radiator Wavy Fin Making Machine High Cutting Accuracy
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight (KG) 1500 Fin Type Opening, Without Opening, Wavy Shape
Working Speed 0-100M/Minute Power 7.5
High Light

PLC Radiator Wavy Fin Making Machine

,

Touch Screen Radiator Wavy Fin Making Machine
Leave a Message
Product Description

Automatic Radiator Wavy Fin Making Machine High Quality



Product Application

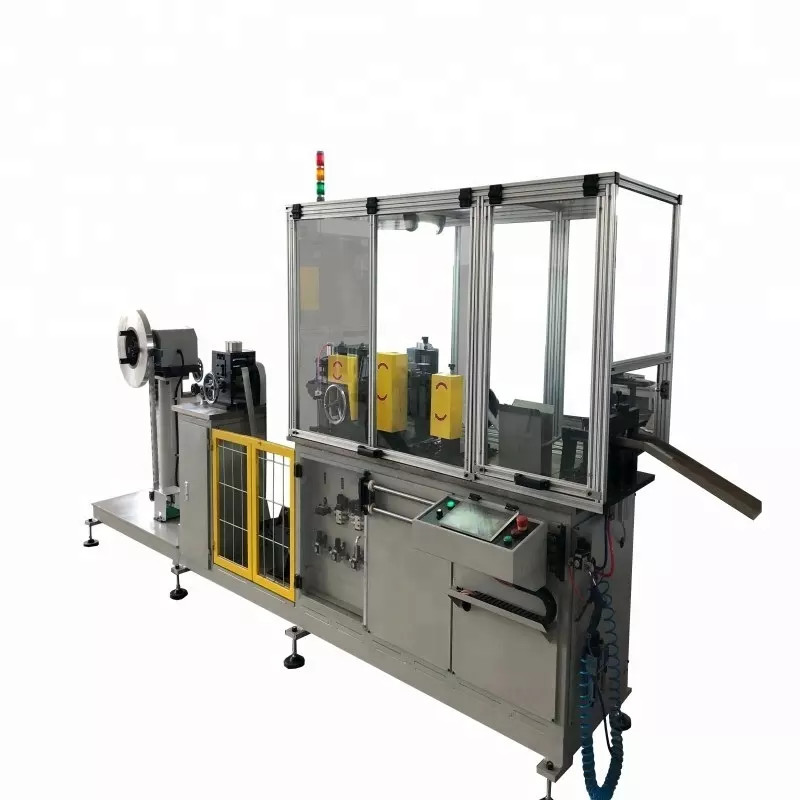

High Quality Automatic Radiator Wavy Fin Making Machine is used to produce heat exchange wavy fins with or without windows.The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.

The fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.



SPECIFICATIONS FOR High Quality Automatic Radiator Wavy Fin Making Machine

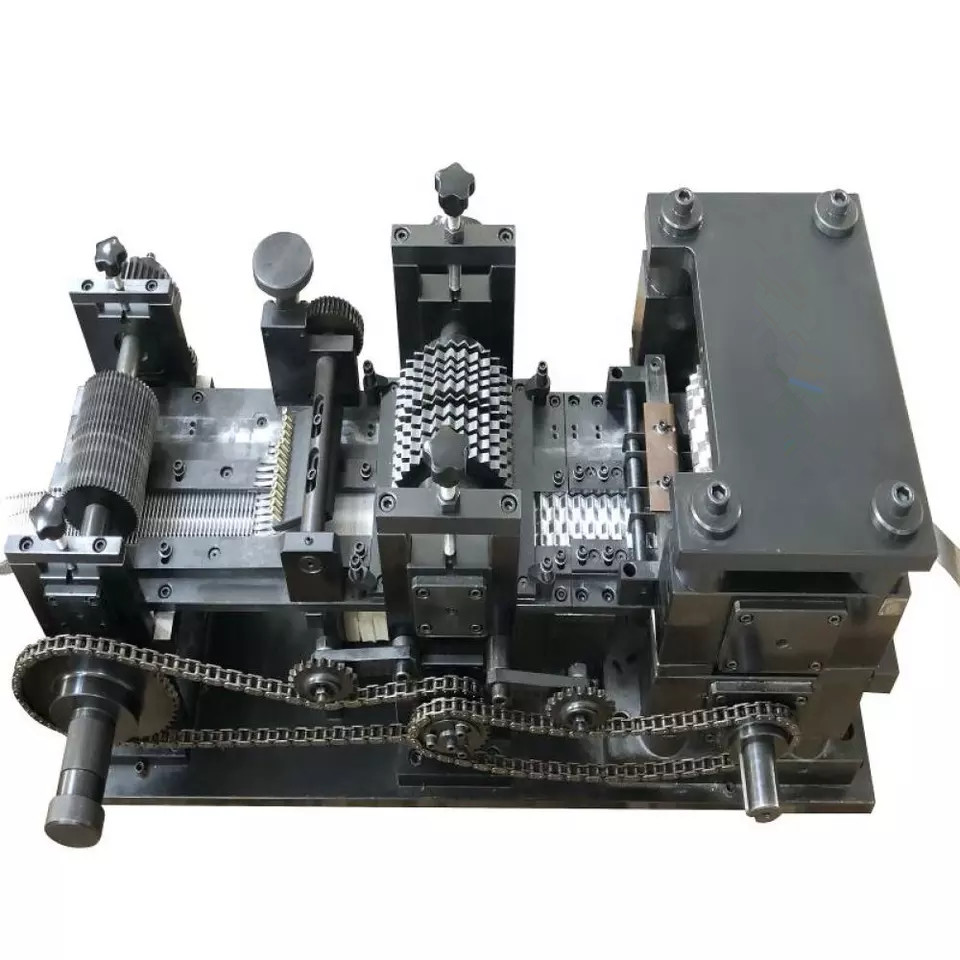

Fin Forming Unit
Aluminum Foil Thickness
mm
min 0.07

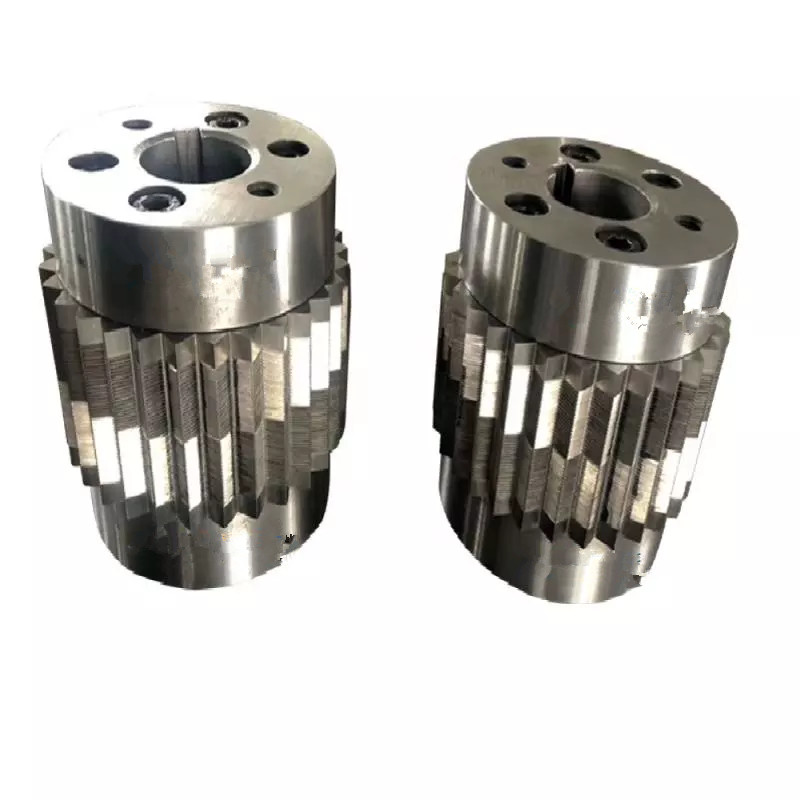

Fin forming blade material

cobalt-containing high speed steel forged parts
Aluminum foil material

4343/3003/4343 H14 or H16
Fin forming blade life

more than 200 million fin convolutions
Coil Information
Inner Diameter of Coil
mm
200
Outer Diameter of Coil
mm
max 1500
Productivity

Feeding speed
m/min
0-100
Fin convolution per minute

1000-4000
Cutting accuracy

+/-0 fin convolution
Machine Weight
Net Weight
kg
1800
Overall Dimension
L*W*H
mm
3500*900*1800





Automatic Radiator Wavy Fin Making Machine High Cutting Accuracy 0



About us:

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
