60M / Minute Copper Radiator Fin Machine Radiator Manufacturing Equipment

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Fin Roller Life About 1000, 000,000 Fin Crests Pneumatic System Working Pressure 0.6Mpa
Working Speed 0-60M/Minute Single Gross Weight 1800 Kg
High Light

Copper Radiator Fin Machine


60M / Minute Radiator Fin Machine


Radiator Manufacturing Equipment

Leave a Message
Product Description

Radiator Manufacturing Equipment Radiator Copper Radiator Fin Machine

Copper Radiator Fin Machine , Radiator Manufacturing Equipment Energy Saving

Product Application

The hot selling copper radiator fin machine is used to produce heat exchange wavy fins with or without windows.
The fin radiator making machine is equipped with the following devices: decoiler, tensioning device, feeding, interval

oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device,

cutting fault indicator, fin forming unit overloading protection device, and fault indication light.

The copper fin radiator making machine adopts PLC, inverter, AC servo control, and touch screen control.

The parameters are easily set through the touch screen.



Advantages of Our Copper Fin Raditor Making Machine


1 The radiator fin forming machine is equipped with PLC control, HMI operation, which is simple and convenient.


2 The copper fin radiator making machine is changeable, and different fin models can be produced on the same machine.

3 Super fast forming speed: we have overcome the difficulty and successfully making the diamond fin in a fin rolling machine

with a speed of 60 m per minute. The fin thickness is max 0.15mm.


4 The copper radiator fin making machine can be equipped with our patent lubrication system.

The micro spray lubrication system can save about 60% lubricatio



SPECIFICATIONS FOR Hot Selling Copper Radiator Fin Machine
Fin Forming Unit Copper Foil Thickness mm 0.045
Fin forming blade material   cobalt-containing high speed steel forged parts
Copper foil material   TP2
Fin forming blade life   more than 1000 million fin convolutions
Fin Coil Information
Inner Diameter of Coil mm 200
Outer Diameter of Coil mm max 1200
Machine Weight Net Weight kg 1800
Overall Dimension L*W*H mm 3800*900*1800

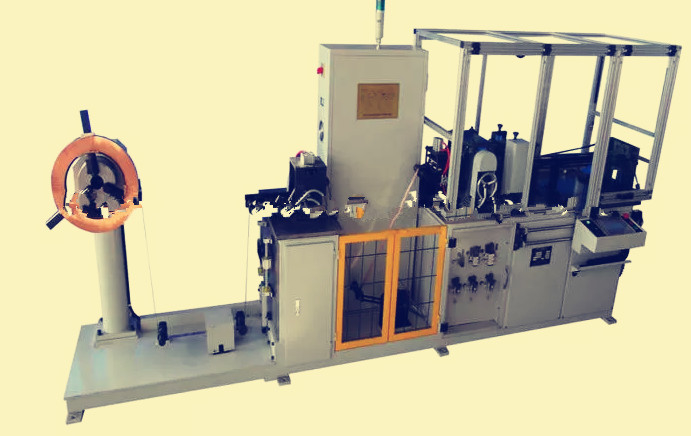

60M / Minute Copper Radiator Fin Machine Radiator Manufacturing Equipment 0


About us:
     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
     With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.

1.Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.

2.Does one set of hob can use different thickness finned materials?
Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.

3.Does the hob can have multiple fins with different width?
Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.

4.Does it can change the hob
The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
