PLC Copper Radiator Fin Forming Machine Plate Fin Type

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Core Components PLC, Motor Fin Use Copper Fin
Working Principle Fin Rolling Mechanism Automation Level Fully-automatic
PLC Brand Delta, Taiwan
High Light

Copper Radiator Fin Forming Machine


PLC Radiator Fin Forming Machine


Fully Automatic Radiator Fin Forming Machine

Leave a Message
Product Description

Copper Radiator Fin Forming Machine Plate-fin Type

Product Application

The radiator fin forming machine is the special equipment for producing copper plate type fin. This radiator fin

forming machine makes the copper plate according to the preset specification, and cuts it automatically. The radiator fin forming machine is mainly comprised of driving, edge folding, pattern forming tooling, counting, cutting, plate collection, and electrical control system.


Main Characteristics
The radiator fin making machine is used to produce copper heat radiation flat fins.
1.The tooling of the radiator fin making machine can make louver or convex ribs, punch holds, and roll ribs. The servo driving system has a high positioning accuracy which assures the cutting accuracy.
2 The radiator fin making machine is controlled by inverter. The running speed of the raw material is 0-40m/min.
3. The radiator fin forming machine has counting function.
4. The plate collecting mechanism can put in order the plates.


Fin Size produced by radiator fin forming machine
1-Fin material: H62, thickness: 0.07-0.08mm;
2-Hole-to-hole distance: 15.88mm;
3- Row-to-row distance: 17.53mm;
4-Tube hole size:1.93mm*15.95mm;
5- Max width of the fin: 143mm;




Technical Parameters of radiator fin making machine
a) running speed: 0-40m/min;
b) cutting frequency: 0-60 times per min; length of plate: adjustable (stepless regulation);



Components List of radiator fin forming machine
Main working table
1 set
Made by our factory
Fin rolling tool
1 set
Made by our factory
Automatic cutting device
1 set
Made by our factory
1 set
Servo motor
1 set
1 set
Touch screen
1 set
Electrical control system
1 set
Other electrical components
1 set

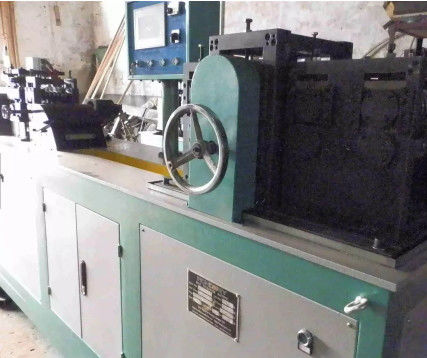

PLC Copper Radiator Fin Forming Machine Plate Fin Type 0
