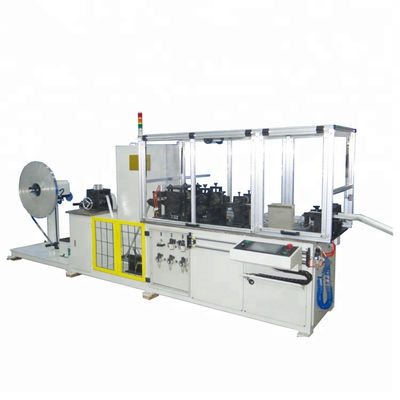

2.5kw Radiator Fin Tube Machine Customized 6.5-10 Tube Pitch

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Row Numbers 1-4 Rows Voltage, Power 220V/50Hz,2.5kw
Protective Shield Can Be Customized Programmable Yes
Cutting Mechanic Cutting
High Light

Radiator Fin Tube Machine

,

2.5kw Radiator Fin Tube Machine

Leave a Message
Product Description

Product features:

1.It can have multi blades,can do maximum 8-10 combination cutting.

2.Automatically cutting and counting

3.It can have 2 rows material rolls machine.

4.Size can be customized

5.It can be programmed.

6.It can have shields or no shields

7.high precision

8.high speed

9.can be customized according to customer requirements of different shapes of fins





Product quick details:

Fin Type: Radiator Fin production efficiency 60sec.
Workstation 1 Number of preset models Non.
Machine weight 800kg Programmable yes
warranty 12 months shape unregular
mould can customise after-sale service yes
Fin Height: 8mm brand name SUNHOPE
Fin Thickness: 0.08mm Speed: 100 M/min
Core Row Number: 1-4 Rows Voltage, power 220V/50Hz,2.5kw
design style can customise running speed adjustable
Driving mode Servo pneumatic










Product introductions:

Multi width combined hob aluminum fin forming machine features: high precision, high speed, can be customized according to customer requirements of different shapes of fins.



The Multi width combined hob aluminum fin forming machine is used to produce heat exchange wavy fins with a combined width fin forming roller.



The fin rolling machine is equipped with the following devices: decoiler, tensioning device, feeding, micro oil spray lubrication, fin forming, correction and cutting function. The machine is designed with protections such as strip run-out detection, blockage detection,cutting fault indicator, fin forming unit overloading protection, and fault indication light.

The electrical control system of the fin making machine adopts PLC, inverter, AC servo control, and touch screen control.

The parameters are easily set through the touch screen.

The fin forming roller is the most important part of the aluminum fin machine, and the combined fin forming roller reduces the

customer's production cost by avoiding the trouble of changing fin forming roller at each width.





About us:

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.







FAQ:

1.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.





2.Does one set of hob can use different thickness finned materials?

Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.



3.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.



4.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.
