2.5kw Radiator Core Builder Machine Maximum Size 1200*1000mm Core Assembly Machinery

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage, Power 220V/50Hz,2.5kw Thickness Of Fin Can Customize
Type Manual Features Can Adapt To Different Core Size
Driving Mode Pneumatics
High Light

2.5kw Radiator Core Builder Machine


1200x1000mm Radiator Core Builder Machine


Adjustable Speed Radiator Core Builder Machine

Leave a Message
Product Description

For big core size maximum size 1200*1000mm Core Assembly machine for radiator core builder machine

Product specifications:

Voltage, power 220V/50Hz,2.5kw design style can customise
running speed adjustable Driving mode semi-automatic
production efficiency 60sec. Number of cylinders 4-6
Number of preset models Non. Core size 1200*1000mm
Programmable Non. Workstation 1
shape unregular Maximum size of head plate 1250mm
after-sale service yes Machine weight 800kg
brand name SUNHOPE warranty 12 months
Air pressure requirements 0.4-0.8 Mpa mould can customise


Product advantages:

1) The flat tubes are stocked in a tube magazine, and are distributed through a servo tube distribution device. The overall comb teeth structure could ensure the flat tube positioning accuracy.

2) The radiator core builder is designed with 2-hand push buttons for safety operation.

3) The radiator core builder is easy for operation, adjustment, and tooling replacement.

4) The left and right push mechanism, and clamping mechanism are controlled by the hydraulic cylinders.

5) The flat tubes are distributed through a servo tube distribution device.

6) The radiator core assembly machine can be equipped with the header flaring mechanism.


Product features:

1.can suitable to different types of tube

2.can adapt to different size of cores

3.It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.

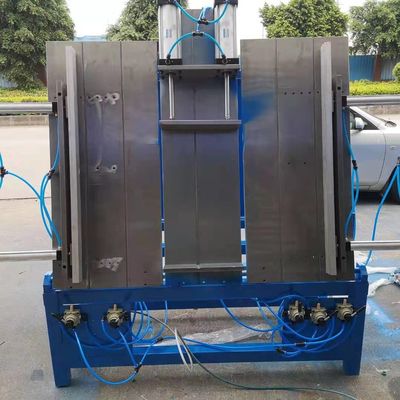

2.5kw Radiator Core Builder Machine Maximum Size 1200*1000mm Core Assembly Machinery 0



About us:

      With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

      If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.


2.Is it belongs to the customized products?

We can customize the size of the core according to the actual production requirements.


3.Does it can use different specifications of tubes in the same machine at the same time?

Yes ,it can install separately the size of 16,22,26,32mm and so on of different tubes.


4.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.
