Car Core Assembly Machine 900*900mm Core size 8mm or 6mm Fin Height 180m/Min Radiator Core Builder

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 30sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Fin & Tube Collocating Time 1 Second Per Collocation Applicable Core Radiator Core, Condenser Core
Core Assembling Speed Around 60 Cores Per Hour Conditions NEW
Voltage, Power 220V/50Hz,2.5kw
High Light

Car Core Assembly Machine


6mm Fin Height Core Assembly Machine


180m/Min Radiator Core Builder

Leave a Message
Product Description

900*900mm Core size 8mm or 6mm Fin Height 180m/Min Radiator Core Builder , Core Assembly Machine For Car


Product features:

1. can suitable to different types of tube

2. can adapt to different size of cores

3. It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.


Product introductions:

The radiator core assembly machine is used for assembling auto radiator cores. The machine has the advantages of stable and reliable working performance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled radiator core has a high assembling accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.


Product specifications:

Efficiency About 4-5 Minutes One Core Safety device radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator
mould can customise Air pressure requirements 0.8Mpa
design style can customise Voltage, power 220V/50Hz,2.5kw
Driving mode Pneumatics running speed adjustable
Number of cylinders 6--8 production efficiency 60sec.
Core size 900*900*56mm Number of preset models Non.
Workstation 1 Programmable Non.
Maximum size of head plate 120mm shape unregular
Machine weight 800kg after-sale service yes
warranty 12 months brand name SUNHOPE

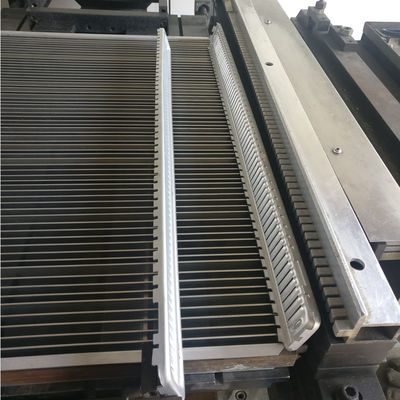

Car Core Assembly Machine 900*900mm Core size 8mm or 6mm Fin Height 180m/Min Radiator Core Builder 0



About us:

      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

      The main products are radiator crimping machine,core builder machine, radiator fin forming machine,ultrasonic cleaning machine,vacuum plastic packaging machines,aluminum cooling system brazing furnace,Air tightness testing machine for condenser radiator,aluminum foil for radiator fin,aluminum sheet for radiator head plate,aluminum radiator components head plate,punching and shearing oil,aluminium flux.

      If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.


2.Is it belongs to the customized products?

We can customize the size of the core according to the actual production requirements.


3.Does it can use different specifications of tubes in the same machine at the same time?

Yes ,it can install separately the size of 16,22,26,32mm and so on of different tubes.


4.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.


5.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?

No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.
