5.5kw Radiator Core Builder Machine Side Plate Fin Tube Install Assembly Machinery
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Fin & Tube Collocating Time||1 Second Per Collocation||Applicable Core||Radiator Core, Condenser Core|
|Core Assembling Speed||Around 60 Cores Per Hour|
5.5kw Radiator Core Builder Machine,
Side Plate Radiator Core Builder Machine

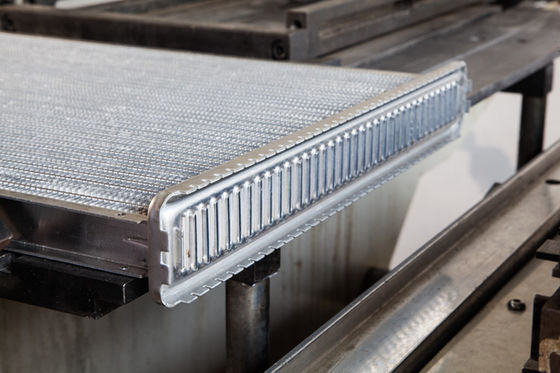

For Manufacturing of Radiator Car core Radiator Side Plate Fin Tube Install Assembly Machine
Radiator core assembled per time: 1 piece
Center-to-center distance: decided by the customer
Flat tube length: 350-800mm;
Flat tube quantity: 75 pieces or more (decided by the customer)
Flat tube width: 20-32mm
Flat tube layer: 1-2 layers (decided by the customer)
Assembling accuracy: diagonal line size differrence kept within ±1.5mm
Total power: 5.5kw
Assembling time per core: about 60 seconds
Equipment weight: 1.8T
1.can suitable to different types of tube
2.can adapt to different size of cores
3.It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.
The radiator core assembly machine is used for assembling auto radiator cores.
The radiator core builder machine has the advantages of stable and reliable working prformance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled condenser core has a high assembling accuracy and a good apperance, which ensures a better brazing effect in the brazing furnace.
1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?
At the moment we assembled the maximum size of core is 1200*1200mm,two rows.
2.Does it can assemble different heights of fins in the same machine ?
No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.
3.What’s the requirements for assembling the head plate of automatic core building machine?
The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
