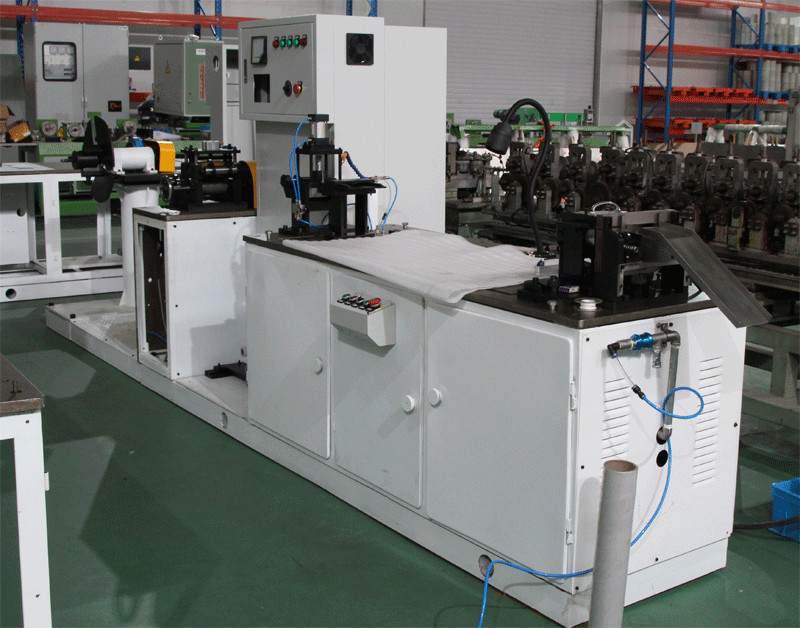

Programmable Radiator Fin Forming Machine 220V 2mm Tube Thickness
|Protective Shield||Can Be Customized||Blade||Single Or Multi-combined|
Programmable Radiator Fin Forming Machine,
220V Radiator Fin Forming Machine,
2mm Thickness Fin Tube Machine
Tube fin machine,radiator fin forming machine 220V 2mm tube thickness
The Aluminium fin forming machine with changeable hob is used to produce heat exchange wavy fins with or without windows.
The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.
The copper fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.
|Voltage, power||220V/50Hz,2.5kw||design style||can customise|
|running speed||adjustable||Driving mode||Servo pneumatic|
|production efficiency||60sec.||Fin Type:||Radiator Fin|
|Number of preset models||Non.||Workstation||1|
|after-sale service||yes||mould||can customise|
|brand name||SUNHOPE||Fin Height:||8mm|
|Speed:||100 M/min||Fin Thickness:||0.08mm|
1.It can have multi blades,can do maximum 8-10 combination cutting.
2.Automatically cutting and counting
3.It can have 2 rows material rolls machine.
4.Size can be customized
5.It can be programmed.
6.It can have shields or no shields
With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
1.Does the hob can have multiple fins with different width?
Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.
2.Does it can change the hob?
The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
3.Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
4.Does one set of hob can use different thickness finned materials?
Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.
