AC220V 1.5 Tons Automatic Fin Forming Machine Single Blade

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Voltage, Power 220V/50Hz,2.5kw Cutting Mechanic Cutting
Programmable Yes Blade Single Or Multi-combined
High Light

1.5 Tons Automatic Fin Forming Machine

,

Single Blade Automatic Fin Forming Machine

,

Mechanic Cutting Radiator Fin Forming Machine

Leave a Message
Product Description

 AC220V 1.5 tons Automatic fin forming machine

1. Product Introduction and main uses:

Fin forming machine is the key equipment in the process of various types of heat exchanger production, with different models and specifications of the mold, can automatically and stably process different types and sizes of aluminum, copper and stainless steel heat transfer fin. The machined parts have the characteristics of high precision in size and shape, beautiful appearance and low processing cost.



2. Performance parameters of the molding machine:

2.1 The motor model used by the equipment is Y series, with a power of 3-5.5kW

2.2 Maximum punching times at rated frequency :100 times /min

2.3 The punching force of the equipment is 5 tons, the thickness of the aluminum strip is 0.1-0.5mm, and the maximum width of the aluminum strip is 300mm

2.4 The maximum punching fin size of the equipment (tooth height x tooth pitch) CX1410 12mm x 10 mm

(See table below for specific models and parameters)

2.5 Power rated voltage: AC380V

2.6 Control circuit voltage: AC220V

2.7 rated frequency: 50Hz

2.8 Appearance of the machine 1200 ×600 × 1500

2.9 The weight of this machine is about 1.5 tons



Technical parameter:

MODEL
Biggest fin width (mm)
Maximum aluminum      strip thickness(mm)
Maximum            fin      height(mm)
Maximum fin pitch(mm)
Production frequency of punching(次/分)
Power voltage(v)
Power(kw)
Remarks
1210B
300
0.5
10
10
0-100
380
3
  • Variable Output with variable-frequency drive
1410B
300
0.5
12
10
0-100
380
3
  • Variable Output with variable-frequency drive

1610B 300 0.5 14 10 0-100 380 3
  • Variable Output with variable-frequency drive
1810B
300
0.5
16
10
0-90
380
4
  • Variable Output with variable-frequency drive
2010B
300
0.5
18
10
0-90
380
4
  • Variable Output with variable-frequency drive
1410BM
450
0.5
12
10
0-90
380
5.5
  • Variable Output with variable-frequency drive
1410BL
600
0.5
12
10
0-80
380
7.5
  • Variable Output with variable-frequency drive

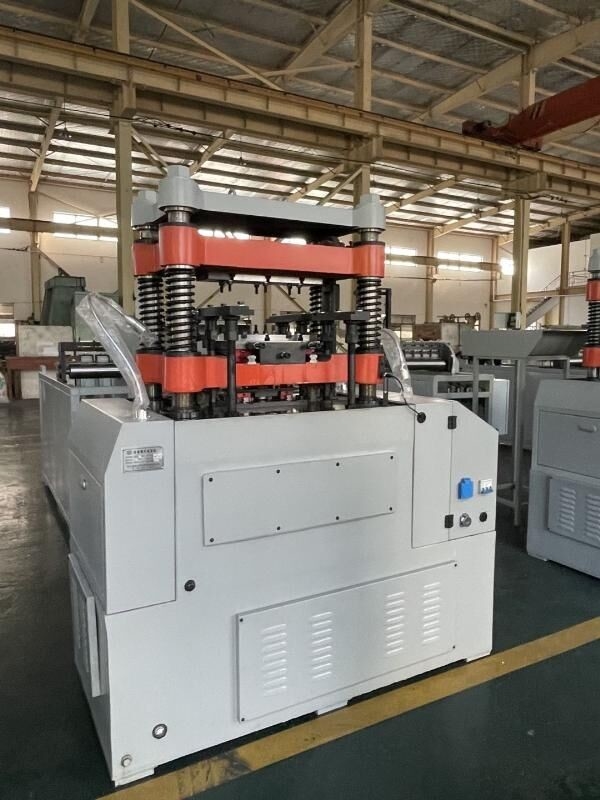

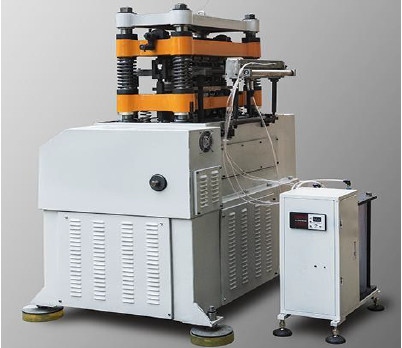

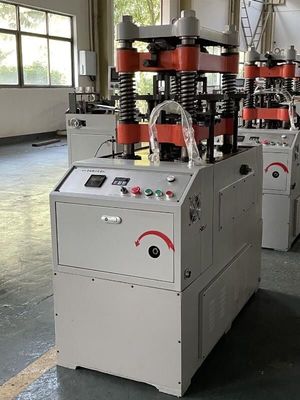

AC220V 1.5 Tons Automatic Fin Forming Machine Single Blade 0





About us:

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

      At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.







FAQ:

1.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.





2.Does one set of hob can use different thickness finned materials?

Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.



3.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.



4.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.
