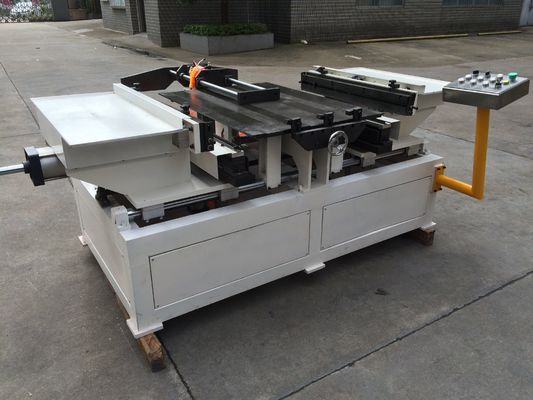

1000*900mm Radiator Core Builder Machine Servo Pneumatic For Automobile Tank
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Can Adapt To Different Core Size | Rows Of Tube | Usually 1 Row Or 2 Rows |
|---|---|---|---|
| Voltage, Power | 220V/50Hz,2.5kw | Driving Mode | Pneumatics Or Servo Pneumatic |
| Size | Adjustable | Size Of Working Station | 1000*900mm |
| High Light | Servo Pneumatic Radiator Core Builder Machine,Adjustable Speed Radiator Core Builder Machine,1 Workstation Radiator Core Builder Machine |
||
Product Description
1000*900mm Core size Core Builder Machine For Automobile Tank 1500KG
Product features:
1. can suitable to different types of tube
2. can adapt to different size of cores
3. It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.
Product specifications:
| shape | unregular | mould | can customise |
| after-sale service | yes | design style | can customise |
| Air pressure requirements | 0.8Mpa | Driving mode | Pneumatics |
| Voltage, power | 220V/50Hz,2.5kw | Number of cylinders | 6--8 |
| running speed | adjustable | Core size | 1000*900*56mm |
| production efficiency | 60sec. | Workstation | 1 |
| Number of preset models | Non. | Maximum size of head plate | 120mm |
| Programmable | Non. | Machine weight | 800kg |
| brand name | SUNHOPE | warranty | 12 months |
| Safety device | radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator | Efficiency | About 4-5 Minutes One Core |
Production introduction:
Aluminum radaitor core builder is able to assemble the header plate, side plate, fins, and flat tubes together as a core body.
The core shall be further brazed in the CAB brazing furnace for brazing purpose.
The core is well assembled and the brazing quality can be assured. The mechanical movements of the radiator core builder are mutually interlinked to prevent wrong operation and possible damages. The current movement is not finished, and the next movement is not able to execute.
About us:
Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?
At the moment we assembled the maximum size of core is 1200*1200mm,two rows.
2.Is it belongs to the customized products?
We can customize the size of the core according to the actual production requirements.
3.Does it can use different specifications of tubes in the same machine at the same time?
Yes ,it can install separately the size of 16,22,26,32mm and so on of different tubes.
4.Does it can assemble different heights of fins in the same machine ?
No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.
5.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?
No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.
