6pcs Cylinders Radiator Core Builder Machine Aluminum Multi Rows
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Can Adapt To Different Core Size | Thickness Of Fin | Usually 8mm Or 5mm |
---|---|---|---|
Number Of Working Station | 1 | Manual Or Automatic | Pneumatics Or Servo Pneumatic |
Type | Manual Or Automatic | Voltage, Power | 220V/50Hz,2.5kw |
Highlight | 6pcs Cylinders Radiator Core Builder Machine,Multi Rows Radiator Core Builder Machine,2.5kw Radiator Core Builder Machine |

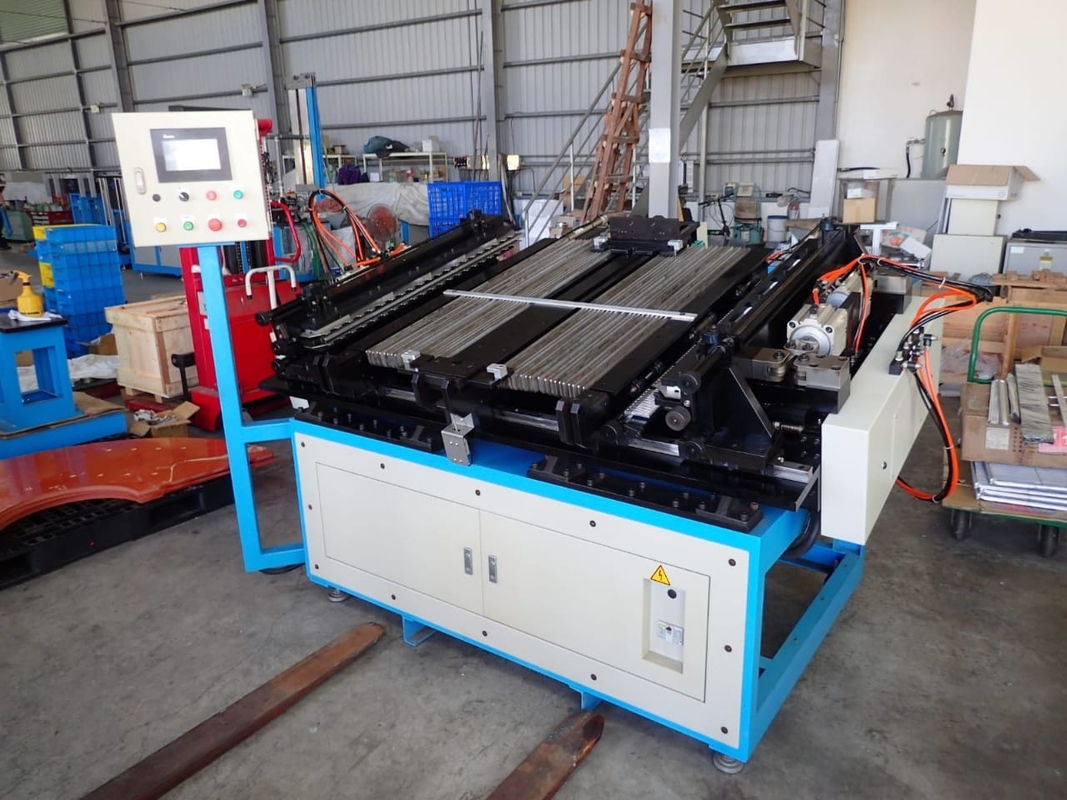

6pcs Cylinders Radiator Core Builder Machine Aluminum Multi rows
Product applications:

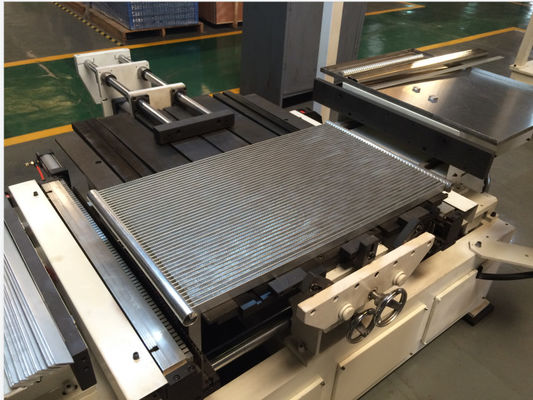

The equipment assembles together the flat tubes, fins, headers, and side plates, and assemble them into a radiator core.
Quality assurance
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality
- All products have passed CE, FCC, ROHS and other certifications
Product specifications:
Voltage, power | 220V/50Hz,2.5kw | design style | can customise |
running speed | adjustable | Driving mode | Pneumatics |
production efficiency | 60sec. | Number of cylinders | 6--8 |
Number of preset models | Non. | Core size | 900*900*56mm |
Programmable | Non. | Workstation | 1 |
shape | unregular | Maximum size of head plate | 120mm |
after-sale service | yes | Machine weight | 800kg |
brand name | SUNHOPE | warranty | 12 months |
Safety device | radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator | Efficiency | About 1 Minutes One Core |
Air pressure requirements | 0.8Mpa | mould | can customise |
About us:
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?
At the moment we assembled the maximum size of core is 1200*1200mm,two rows.
2.Does it can assemble different heights of fins in the same machine ?
No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.
3.What’s the requirements for assembling the head plate of automatic core building machine?
The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
