3.4kW Radiator Fin Machine For Making Condenser Intercooler Oil Cooler

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Conditions New Fin Width 8~200mm (customized)
Fin Pitch 1.6~5.0mm Protective Shield (customized)
Tooling Life 120~150 Million Corrugations Fin Rolling Speed 1000~4000 Corrugatations Per Minute
High Light

3.4kW Radiator Fin Machine


200mm Fin Width Radiator Fin Machine


100m / min Radiator Fin Machine

Leave a Message
Product Description

Radiator Fin Machine for making radiator condenser Intercooler Oil cooler:


Product technical parameters:

Item Data
Blank material Aluminum alloy foil AA4343/AA3003/AA4343 or single foil
Foil thickness 0.04~0.30mm
Foil reel ID 190~210mm
Foil reel OD 1200mm
Finished fin Fin height 2.0~22mm
Height tolerance +0.03mm, - 0.01mm
Fin height levelness Less than 0.05mm
Fin width 8~200mm
Fin pitch 1.6~5.0mm
Fin pitch tolerance +/-0.10mm
Machine capability Foil feeding speed 0-100m/min
Fin rolling speed 1000-4000 corrugations per minute
Fin cutting speed Max. 60 times per minute
Cutting tolerance +/- 0 corrugation (on top of corrugation)
Tooling material Forged high speed steel (W6)
Life 120~150 million corrugations
Total motor power 3.4kW
Compressed air source 0.6MPa
Machine dimension About 5000 x 900 x 1800mm
Machine weight About 3000kg



Product advantages:

Compared with similar products, our fin forming machine has the following advantages:

. Stepless adjustment. It can realize stepless adjustment and break through the limitation of less gears of traditional mechanical speed regulation.

. The structure is compact and easy to operate. The traditional structure is optimized to make the structure more reasonable and the operation more convenient.

. High efficiency, low power consumption and stable performance. The improvement of precision, the reduction of wear and the optimization of structure make the overall efficiency of the machine tool improve and the performance is more stable.

. Convenient maintenance and low maintenance cost. The optimization of the structure makes the parts of the machine tool the most simplified, so that the maintenance is convenient and the maintenance cost is low.


Fin forming tool (hob):

  • Divided into fin materials according to the tool processing:

Aluminum fin forming tool, copper fin forming tool, stainless steel forming tool

  • According to the shape of the fin rolled by the cutter roll, it is divided into:

U-shaped arc fin forming tool, V-shaped arc fin forming tool, flat top fin forming tool, staggered fin forming tool

  • According to the shape of the fin window rolled out by the cutter roll, it is divided into:

Open shutter fin forming tool, non-open shutter fin forming tool

Dimples, perforated fin forming tools, non-opening ribbed fin forming tools


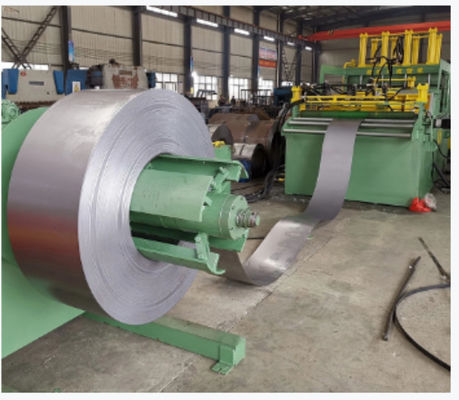

3.4kW Radiator Fin Machine For Making Condenser Intercooler Oil Cooler 0


About us:

        Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

       At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

      If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




1.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.


2.Does one set of hob can use different thickness finned materials?

Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.


3.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.


4.Does it can change the hob?


The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
