120 M / Min Feeding Speed Radiator Fin Forming Machine

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Weight 1.8 Tons Programmable Yes
Cutting Mechanic Automatic Producing Material Aluminium
Blade Single Or Multi Combined Protective Shield No
High Light

120M / Min Radiator Fin Forming Machine

,

Single Combined Radiator Fin Forming Machine

Leave a Message
Product Description

120 m / min Feeding Speed Radiator Fin Forming Machine



Product introduction:

Place of production :china
Feeding speed: 120 m / min
Number of pieces processed at the same time: 1 piece
Thickness of aluminum foil: 0.04 ~ 0.30mm
Total power: 4.5-7.5kw
Equipment air source pressure: 0.6MPa
Total weight of equipment: 1.8 tons





Fin forming tool (hob):

  • Divided into fin materials according to the tool processing:

Aluminum fin forming tool, copper fin forming tool, stainless steel forming tool

  • According to the shape of the fin rolled by the cutter roll, it is divided into:

U-shaped arc fin forming tool, V-shaped arc fin forming tool, flat top fin forming tool, staggered fin forming tool

  • According to the shape of the fin window rolled out by the cutter roll, it is divided into:

Open shutter fin forming tool, non-open shutter fin forming tool

Dimples, perforated fin forming tools, non-opening ribbed fin forming tools

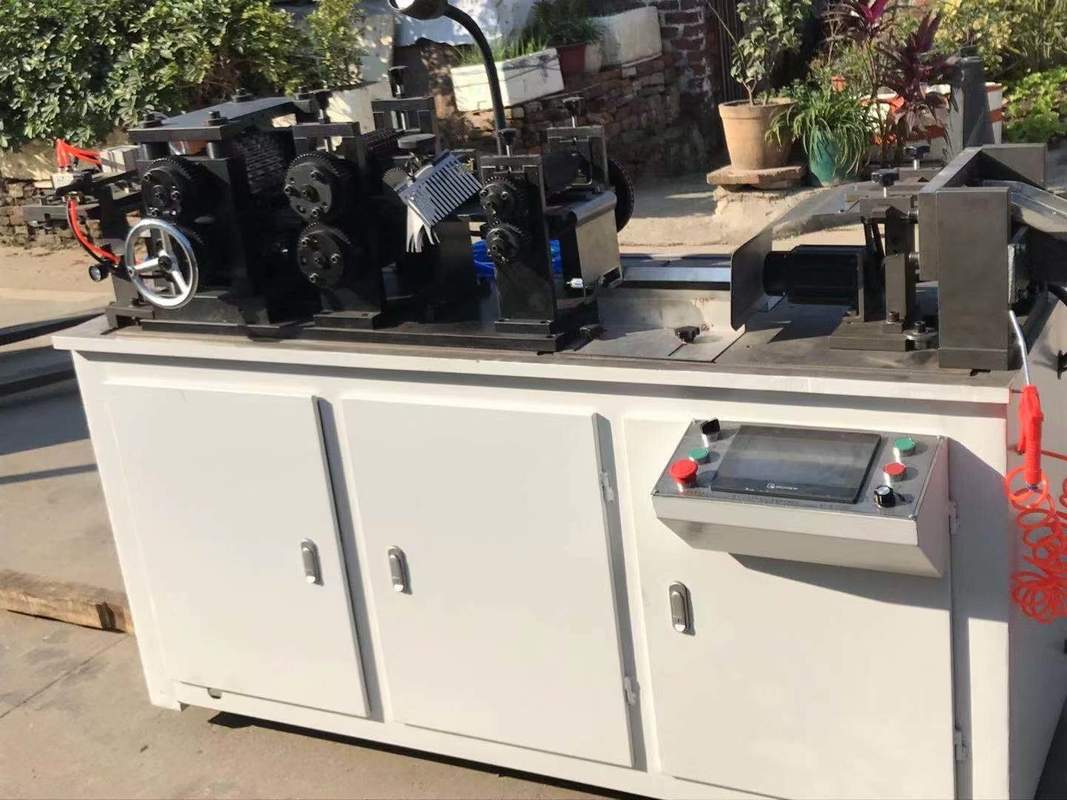

120 M / Min Feeding Speed Radiator Fin Forming Machine 0



About us:

      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

      If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.



2.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.



3.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.



4.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
