1500KG 6pcs Cylinders Radiator Core Builder Machine Aluminum

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness Of Fin Usually 8mm Or 5mm Features Can Adapt To Different Core Size
Number Of Working Station 1 Type Manual Or Automatic
Manual Or Automatic Pneumatics Or Servo Pneumatic Voltage, Power 220V/50Hz,2.5kw
High Light

2500W Radiator Core Builder Machine

,

6pcs Cylinders Radiator Core Builder Machine

,

2500W radiator core builder

Leave a Message
Product Description

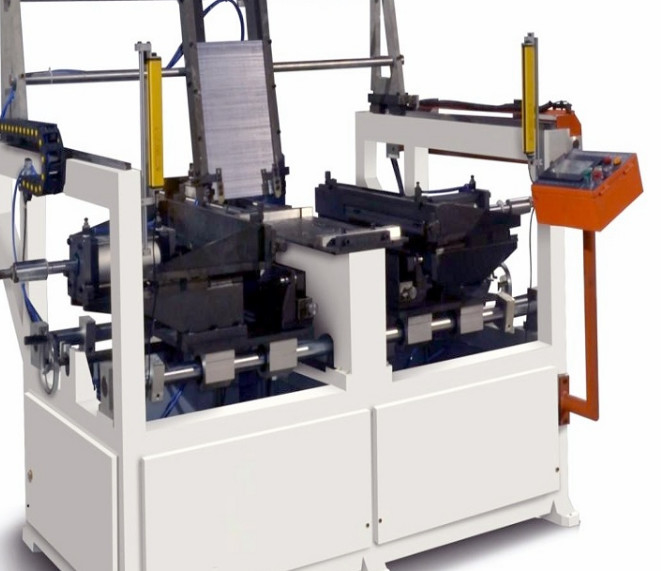

1500K​G 6pcs Cylinders Radiator Core Builder Machine Aluminum

Product features:

      The machine is used for assembling heater radiator cores. The machine has the advantages of stable and reliable working performance, easy operation, low noise, accurate positioning of flat  tube center, and even distribution of fins. The assembled radiator core has a high assembling accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.



Product applications:

     The equipment assembles together the flat tubes, fins, headers, and side plates, and assemble  them into a radiator core.





Quality assurance

  • Every production process has a special person to test to ensure quality
  • Have professional engineers to check the quality
  • All products have passed CE, FCC, ROHS and other certifications

Product specifications:

Voltage, power 220V/50Hz,2.5kw design style can customise
running speed adjustable Driving mode Pneumatics
production efficiency 60sec. Number of cylinders 6--8
Number of preset models Non. Core size 900*900*56mm
Programmable Non. Workstation 1
shape unregular Maximum size of head plate 120mm
after-sale service yes Machine weight 800kg
brand name SUNHOPE warranty 12 months
Safety device radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator Efficiency About 1 Minutes One Core
Air pressure requirements 0.8Mpa mould can customise

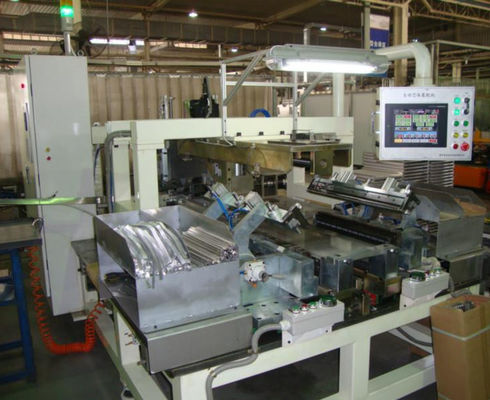

1500KG 6pcs Cylinders Radiator Core Builder Machine Aluminum 01500KG 6pcs Cylinders Radiator Core Builder Machine Aluminum 1



About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

      With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

      At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.



2.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.



3.What’s the requirements for assembling the head plate of automatic core building machine?

The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
