6pcs Cylinders 900*900mm Radiator Core Builder Fully Automatic

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Product Details
Fin & Tube Collocating Time 1 Second Per Collocation Conditions NEW
Core Components PLC, Motor Voltage, Power 220V/50Hz,2.5kw
Core Assembling Speed Around 60 Cores Per Hour Applicable Core Radiator Core, Condenser Core
High Light

900*900*56mm Radiator Core Builder

,

6pcs cylinders radiator core builder

,

6pcs cylinders core assembly machine

Leave a Message
Product Description

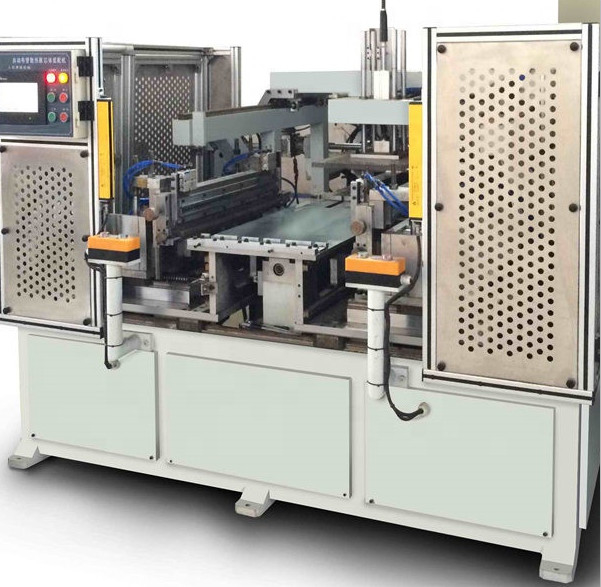

6pcs Cylinders 900*900mm Radiator Core Builder Fully Automatic

Product introductions:
     This radiator core assembly machine consists of left and right header positioning fixture, tube end expansion device,tube storage box, tube distribution device, tube guidance device, tube guidance screw, assembling working table, flat tube and fin positioning device, tube distribution up-down platform,core body compression mechanism, pneumatic system,and electrical system. The core assembly machine combines the mechanical, servo and pneumatic system with screw adjustment to assemble the radiator core.



Product features:

1.can suitable to different types of tube

2.can adapt to different size of cores

3.It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.



Product applications:

It is used for heater aluminium core assembling machine.





Product quick details:

Voltage, power 220V/50Hz,2.5kw design style can customise
running speed adjustable Driving mode Pneumatics
production efficiency 60sec. Number of cylinders 6--8
Number of preset models Non. Core size 900*900*56mm
Programmable Non. Workstation 1
shape unregular Maximum size of head plate 120mm
after-sale service yes Machine weight 800kg
brand name SUNHOPE warranty 12 months
Safety device radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator Efficiency About 1Minutes One Core
Air pressure requirements 0.8Mpa mould can customise





6pcs Cylinders 900*900mm Radiator Core Builder Fully Automatic 0



About us:

    With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

    At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.







FAQ:

1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.



2.Is it belongs to the customized products?

We can customize the size of the core according to the actual production requirements.



3.Does it can use different specifications of tubes in the same machine at the same time?

Yes ,it can install separately the size of 16,22,26,32mm and so on of different tubes.



4.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.



5.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?

No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.
