Radiator Core Builder Machine Multirow

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Core Components PLC, Motor Conditions NEW
Voltage, Power 220V/50Hz,2.5kw Applicable Core Radiator Core, Condenser Core
Core Assembling Speed Around 60 Cores Per Hour Fin & Tube Collocating Time 1 Second Per Collocation
High Light

5500W Radiator Core Builder Machine


350mm Length Tube Radiator Core Builder Machine


5500W radiator core builder

Leave a Message
Product Description

Product descriptions:

      The radiator core assembly machine is used for assembling auto radiator cores.

      The radiator core builder machine has the advantages of stable and reliable working prformance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled condenser core has a high assembling accuracy and a good apperance, which ensures a better brazing effect in the brazing furnace.


Product parameters:

Radiator core assembled per time: 1 piece
Center-to-center distance: decided by the customer
Flat tube length: 350-800mm;
Flat tube quantity: 75 pieces or more (decided by the customer)
Flat tube width: 20-32mm
Flat tube layer: 1-2 layers (decided by the customer)
Assembling accuracy: diagonal line size differrence kept within ±1.5mm
Total power: 5.5kw
Assembling time per core: about 60 seconds
Equipment weight: 1.8T

Equipment overall dimension (for reference): 3200 mm×3000 mm×1600 mm
The radiator core assembly machine is also called as core builder machine, radiator machine.

Product features:

1.can suitable to different types of tube

2.can adapt to different size of cores

3.It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.

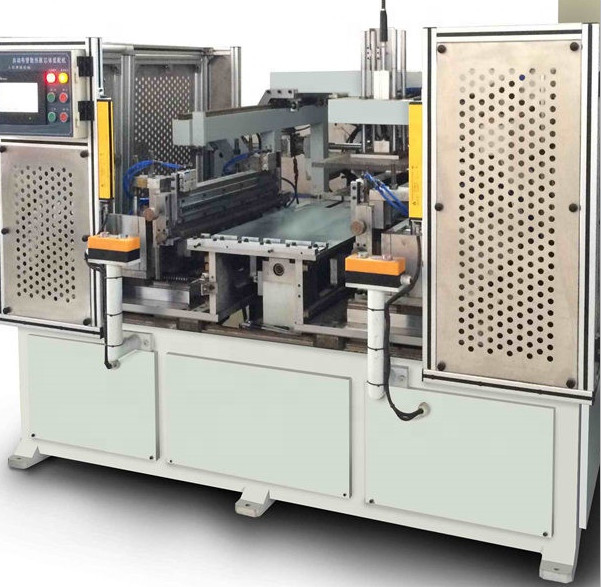

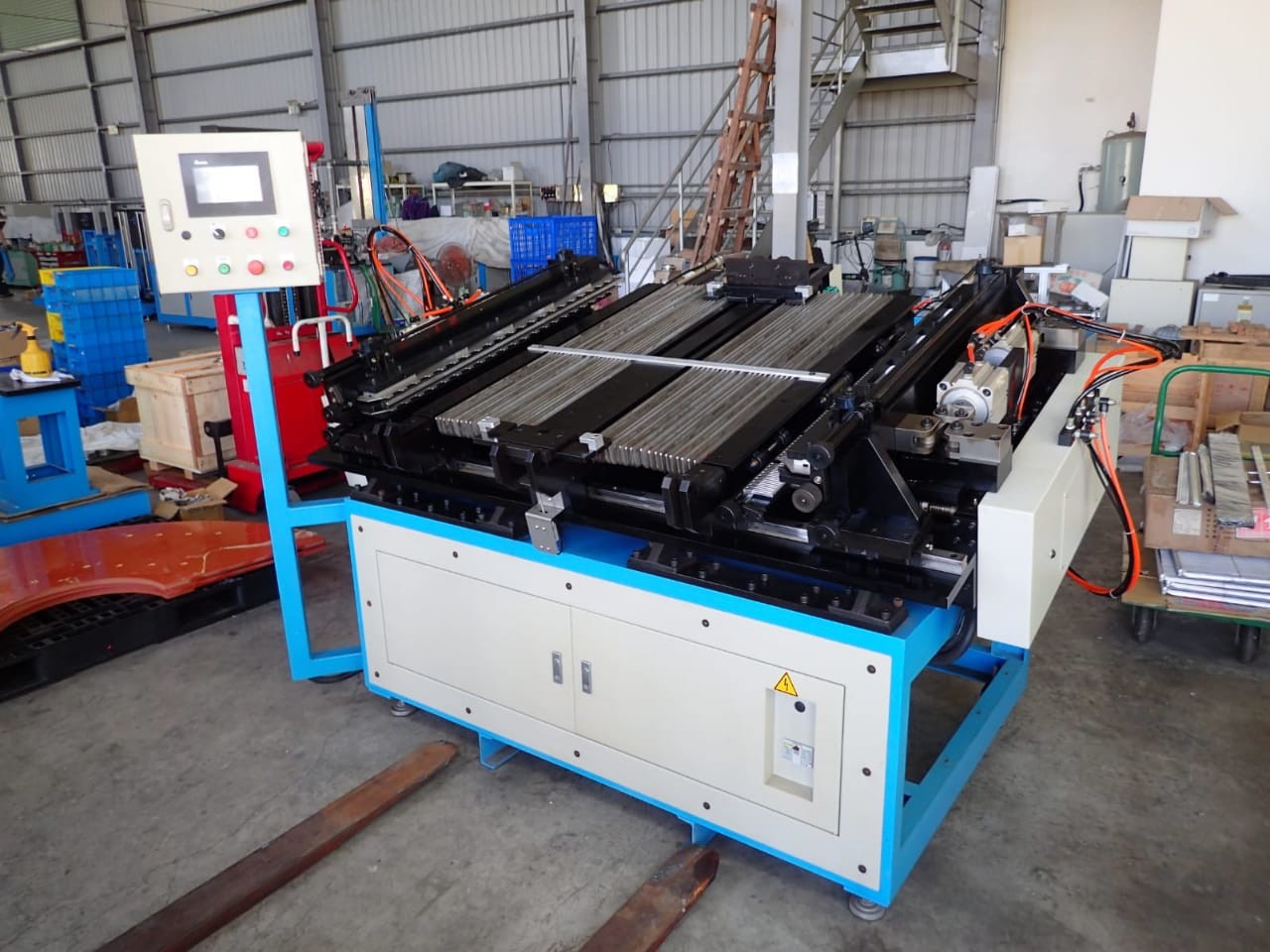

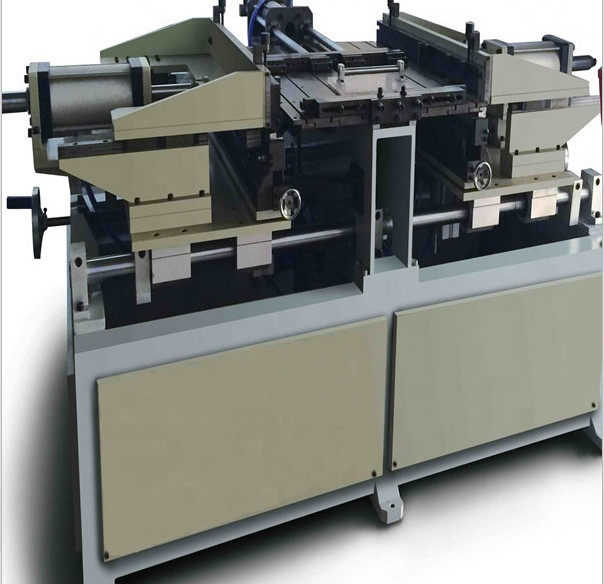

Radiator Core Builder Machine Multirow 0Radiator Core Builder Machine Multirow 1



About us:

   Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

   At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.



1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.


2.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.


3.What’s the requirements for assembling the head plate of automatic core building machine?

The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
