Stable Performance PLC Radiator Core Builder Machine 0.6MPa

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Fin & Tube Collocating Time 1 Second Per Collocation Core Components PLC, Motor
Applicable Core Radiator Core, Condenser Core Voltage, Power 220V/50Hz,2.5kw
Conditions NEW Core Assembling Speed Around 60 Cores Per Hour
High Light

PLC Radiator Core Builder Machine


0.4MPa Radiator Core Builder Machine


0.4MPa core builders

Leave a Message
Product Description

Stable Performance PLC Radiator Core Builder Machine 0.6MPa


Product features:

    Stable Performance PLC Radiator Core Builder Machine 0.6MPa is used for assembling heater radiator cores. The aluminum radiator core assembly machine has the advantages of stable and reliable working performance, easy operation, low noise, accurate  positioning of flat tube center, and even distribution of fins. The assembled radiator core has a high assembling  accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.


Product applications:

    The aluminum radiator core assembly machine assembles together the flat tubes, fins, headers, and side plates, and assemble  them into a radiator core. We have the radiator core builders for 1-2 rows, the big size radiator core builder with tilting work table for max 5 rows, the radiator core builder line (from high speed fin machine to core builder machine line).


Product parameters:

Radiator core assembled per time: 1 piece

Center-to-center distance: decided by the customer

Flat tube row: 1-2 row

Radiator length: 350-800mm;

Radiator width: 48mm

Radiator height: 350-800mm

Air source pressure: 0.4MPa

Voltage: AC220V 50HZ

Equipment overall dimension (for reference): about 2100 x 1800 x 1700mm

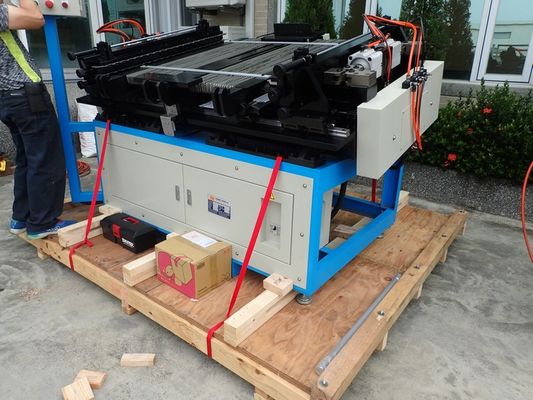

Stable Performance PLC Radiator Core Builder Machine 0.6MPa 0Stable Performance PLC Radiator Core Builder Machine 0.6MPa 1



About us:

    Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

   If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.


2.Is it belongs to the customized products?

We can customize the size of the core according to the actual production requirements.


3.Does it can use different specifications of tubes in the same machine at the same time?

Yes ,it can install separately the size of 16,22,26,32mm and so on of different tubes.


4.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.


5.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?

No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.
