High Efficiency 8mm Fin Height 180m/Min Radiator Core Builder , Core Assembly Machine For Car

Product descriptions:

     This production line is specially designed for building single-row aluminum radiator and condenser cores. It is comprised of high speed fin rolling machine, flat tube auto loading device, fin & tube auto collocating device, auto radiator building machine.

     The whole line is arranged like a Matrix, so it is called as "Matrix Core Builder Line" as well.
     This line is equipped with medium-speed fin rolling machine for max. core size 900x600mm and core builder is online.



Product features:

- Full automatic fin rolling, flat tube loading, fin + tube collocating and core assembling

- Max. two operators for the complete line

- High working efficiency, one hour can assemble 60 cores



Product specifications:

1# Medium speed fin rolling machine
- Fin rolling speed 180m/min
- Fin cutting speed: max. 80 cuts/min
- Full servo drive: foil decoiling, tension adjusting, foil feeding, counting, cutting
- Twin-head decoiler, servo decoiling
- Patent fractional spray lubricating
- PLC control, HMI operation
- Fin rolling area full sealed, less pollution

2# Flat tube auto loading device
- Blank tubes are provided in trays
- Tray is automatically fed to loading device
- Flat tubes are automatically fed to hopper
- Empty tray is automatically discharged
- Only one operator loads trays to the device

3# Fin & tube collocating device
- Fins are fed into two tubes accurately
- Tubes are dropped from hopper accurately
- Auto counting and pushing collocated unit to core assembly station

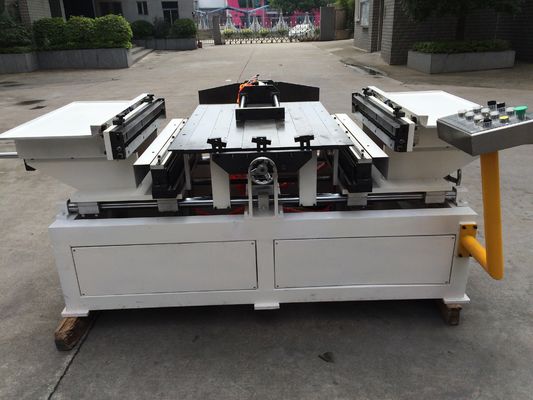

4# Auto Core Assembling Station
- Manually apply header plates (or header pipes) to fixture on mould
- Manually lay side plates before assembling
- Only pressing down buttons, all assembly actions will be finished in sequence automatically
- With auto pneumatic tapping device

5# Optional wire tying machine
- Capable for tying both radiator and condenser cores
- Servo feeding wire, servo reversing wire
- PLC control, HMI operation, full automatic
- Only manual loading and unloading

High Efficiency 8mm Fin Height 180m/Min Radiator Core Builder , Core Assembly Machine For Car 0


About us:

    Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.



FAQ:

1.How long can finish assembling the radiator core by the semi automatic core building machine?

The experienced workers can assemble one aluminium core builder in 3-5 minutes,depends on the size of core.



2.What’s the requirements for assembling the head plate of automatic core building machine?

The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.





3.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?

No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.



4.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.









Tags:

Sunhope Radiator Core Builder Machine

8mm fin Radiator Core Builder Machine

5mm fin core assembly machine
