40kHz Ultrasonic Disinfection Machine , Ultrasound Clean Machine AC 220V
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Core Components||PLC, Motor||Fuel||Electric|
|Cleaning Type||Industrial Ultrasonic Cleaner||Driving Mode||Servo Pneumatic|
40kHz ultrasonic disinfection machine,
AC 220V ultrasonic disinfection machine,
40kHz ultrasound clean machine

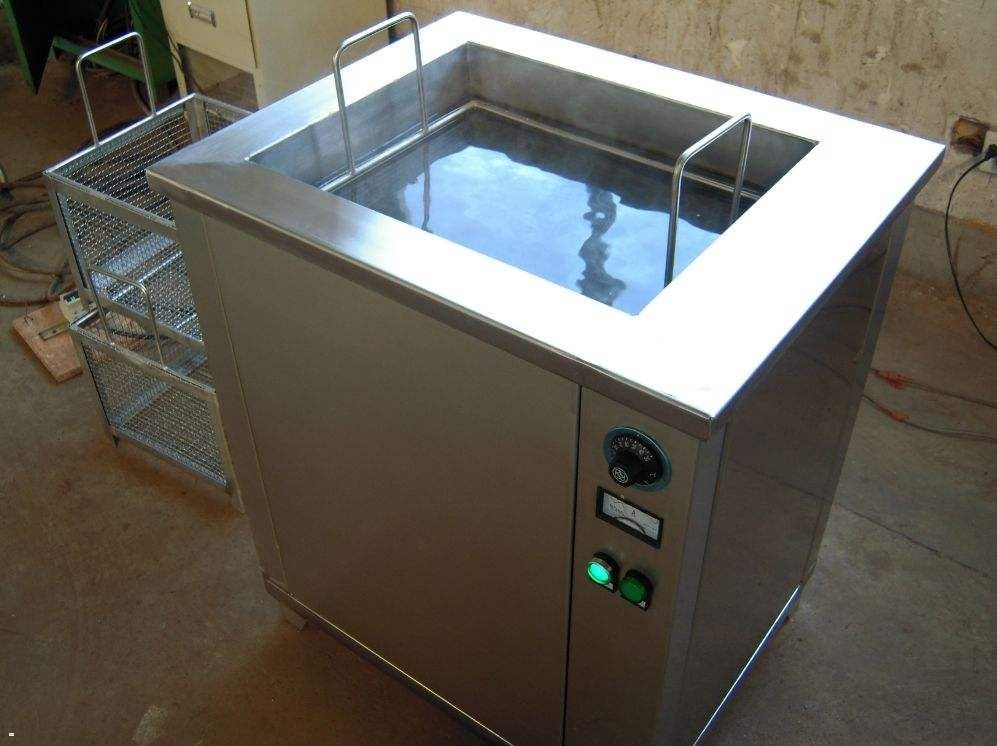

40kHz Ultrasonic Disinfection Machine For Side Plate AC 220V
Ultrasonic cleaning machine for mould cleaning has been effectively employed for many years. As a noncontact method, mould detail is not damaged during cleaning and critical tolerances can be maintained, extending mould life. The high cleanliness level achieved with ultrasonics results in better part release and longer runs. This improves productivity and reduces scrap.
The penetrating nature of ultrasonic cleaning removes residual polymer, mould release and outgas residue extending the mould life.
Ultrasonic cleaner removes carbonization, mould release, gassing, flashing, and other residues from moulds and dies in as little as 15-20 minutes Ultrasonic cleaning utilizes cavitation and implosion, the rapid formation and violent collapse of minute bubbles or cavities in a cleaning liquid, to enhance cleaning. This activity, when combined with an appropriate cleaning chemistry,creates a unique penetrating action that is highly effective, even in blind holes and tiny crevices.
This combination of high energy and deep penetration without part contact gets results. No other process cleans faster, more safely, or more thoroughly.
|IN-TANK SURFACE FINISHING||Hard-Cr Plating Treatment ( 20+ microns )|
|HOUSING'S MATERIAL||Stainless steel|
|ULTRASONIC FREQUENCY*||28kHz / 40kHz|
|ULTRASONIC OUTPUT POWER (MAX.)||600W||900W||1200W||1500W||1800W||3600W|
|HEATER'S (HOT PLATE) POWER||1.5kW||3kW||4.5kW|
|CLEANING TANK’S POWER REQUIREMENT||AC 220V / 240V,||AC 220V / 240V,|
|1, 15AMP||1, 25AMP|
|GENERATOR’S POWER REQUIREMENT||AC 220V / 240V,|
|68kHz / 80kHz / 120kHz are also available|
1.Short wash process leading to reduced time spent in cleaning
2.No manual labor required. An operator is not required when the machine is cleaning the mould
3.High levels of cleanliness give longer life in production
4.No abrasion of precise edges and surfaces gives longer mould life
5.No solvents needed because of aqueous process
6.Suitable for all moulds, large and small
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
1.Why do you choose our company to buy the radiator parts?
Our company manufactures and develops hardware moulds by ourselves,we owes over 200 different specifications moulds of head plates ,which covers most of hot sale cars model in the market.
2.Why do you provide the producing equipment of radiator at the same time?
Our company has over 10 years experience in manufacturing the radiator,we are very familiar with all kinds of performance of equipment in the process of manufacturing the radiator.We are able to introduce the customers what’s the best equipment for them according to our experience.
3.Does your company provide after-sales service to the equipment?
Our company has a long term working relationship with the equipment provider,we are very happy to offer the best after-service to our customers.
4.Does the after-sales service provided by your company have any advantages?
Because we are also the users of equipment,we have a better understanding in the potential problem which maybe appears in the process of production of equipment.We can provide the fastest and right solution for our customers.
5.What’s the advantages of your company?
Our company makes our effort to provide the one-stop service to our customers who are going to develop manufacturing the radiators,which is from designing and setting up the factory , completing set of equipment to the supply of all kinds of components of radiators.All of this can be one-stop procurement in our company.We make sure the components and the production equipment can be match perfectly so that can manufacture the qualified and high quality products.
