Programmable 5-8mm Fin High Radiator Fin Making Machine Fully Automatic

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Blade Single Or Multi-combined Cutting Mechanic Cutting
Programmable YES Weight 800KG
Core Row Numbers 1-4 Rows Protective Shield Can Customized
High Light

1.5m High radiator tube making machine

,

1m Wide radiator tube making machine

,

1.5m High high speed press machine

Leave a Message
Product Description

Programmable 5-8mm Fin High Radiator Fin Making Machine Fully Automatic

Product introductions:

      The Fully automatic Radiator Fin Forming Machine 1.5m high,1m wide aluminum fin is used to collect the fins produced by the fin machine.

      The machine could first turn each fin upright and then stores fin in a tray. The machine is PLC  controlled and connected with the radiator fin machine through a belt conveyance system. The tray  is moved based on the signal of the belt conveyor and is driven by a servo motor. The fin is saved in a fin tray. The fin collection device could greatly improve the assembling efficiency.





Product features:

1.It can have multi blades,can do maximum 8-10 combination cutting.

2.Automatically cutting and counting

3.It can have 2 rows material rolls machine.

4.Size can be customized

5.It can be programmed.

6.It can have shields or no shields

7.high precision

8.high speed

9.can be customized according to customer requirements of different shapes of fins





Product Specifications:

Voltage, power 220V/50Hz,2.5kw design style can customise
running speed adjustable Driving mode Servo pneumatic
production efficiency 60sec. Fin Type: Radiator Fin
Number of preset models Non. Workstation 1
Programmable yes Machine weight 800kg
shape unregular warranty 12 months
after-sale service yes mould can customise
brand name SUNHOPE Fin Height: 8mm
Speed: 100 M/min Fin Thickness: 0.08mm
Core Row Number: 1-4 Rows

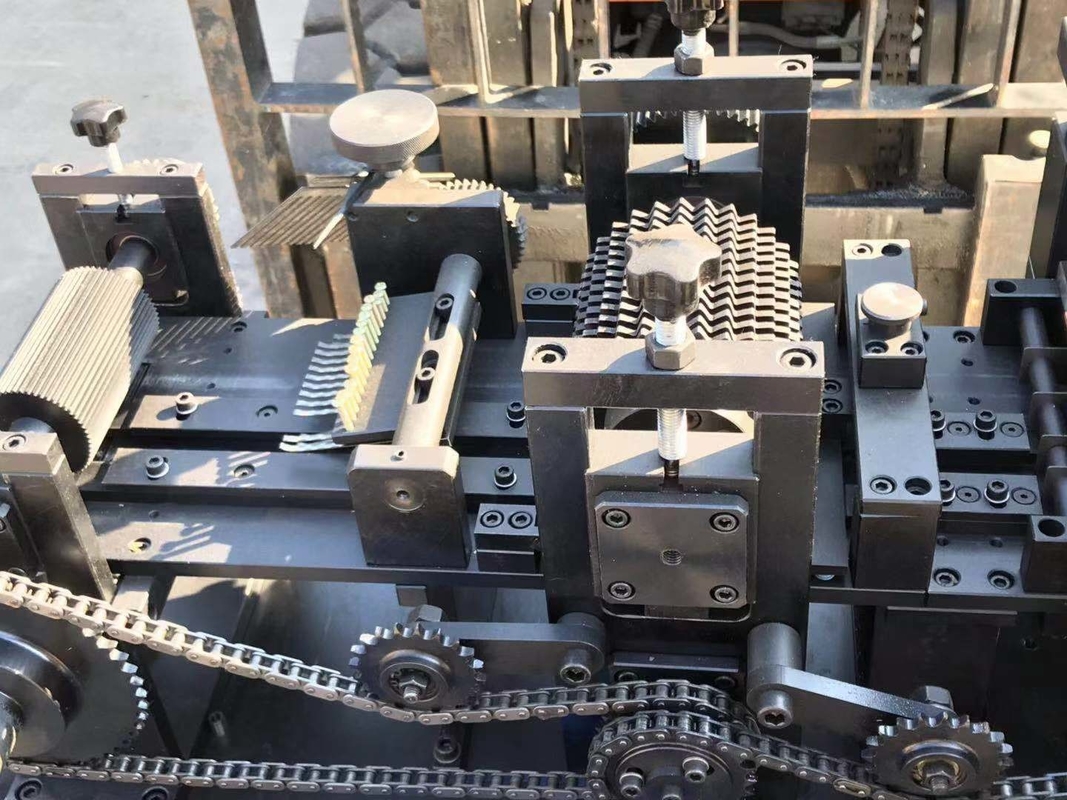

Programmable 5-8mm Fin High  Radiator Fin Making Machine Fully Automatic 0







About us:

    Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.







FAQ:

1.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.





2.Does one set of hob can use different thickness finned materials?

Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.



3.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.



4.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.
