0.6 Mpa 8-200mm Fin Width Radiator Fin Machine Simple Operation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFin Pitch | 1.6~5.0mm | Fin Rolling Speed | 1000~4000 Corrugatations Per Minute |
---|---|---|---|
Conditions | New | Fin Width | 8~200mm (customized) |
Protective Shield | (customized) | Tooling Life | 120~150 Million Corrugations |
Highlight | 0..8Mpa flat fin machine,50mm Width flat fin machine,50mm Width fin making machine |

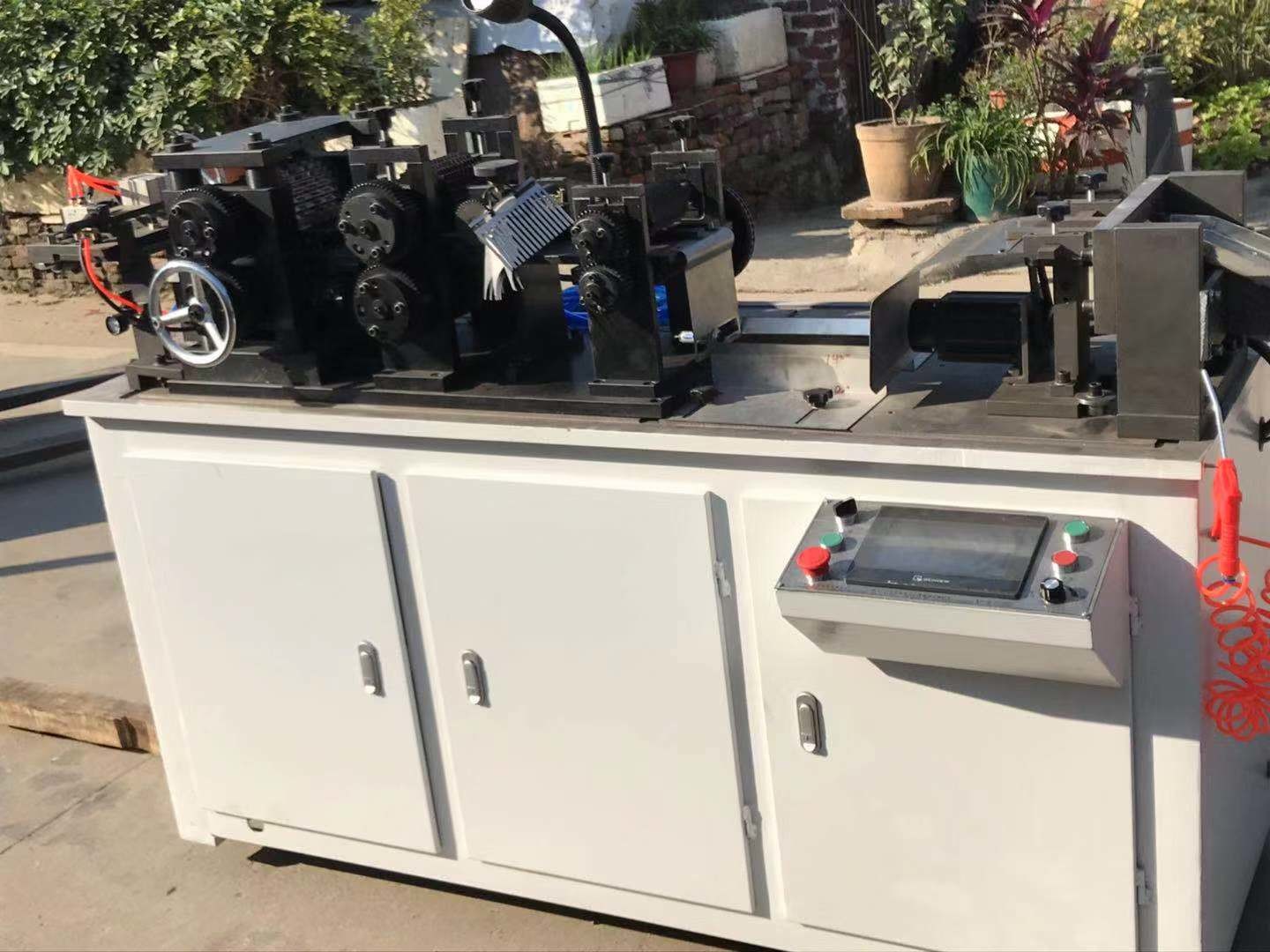

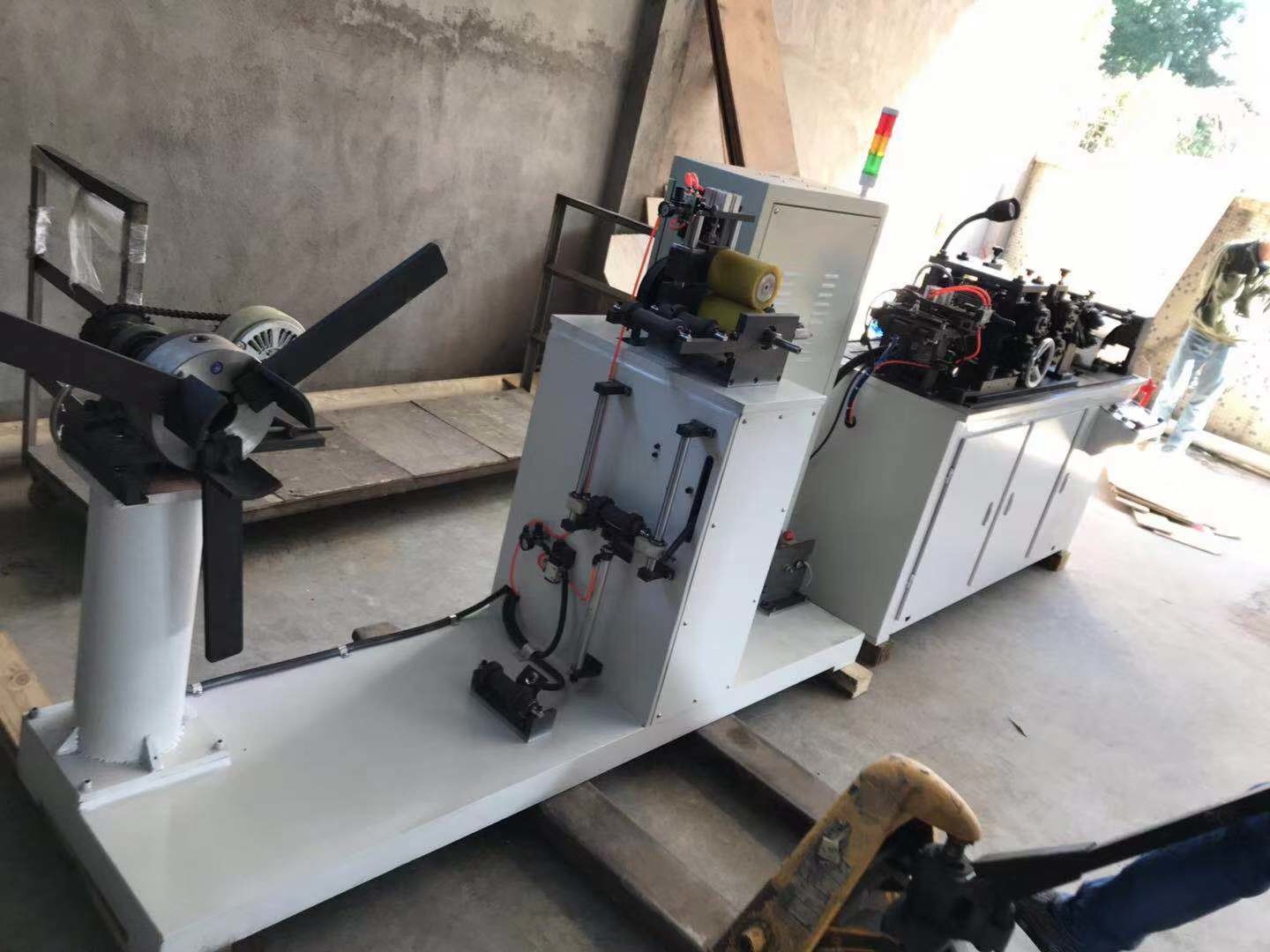

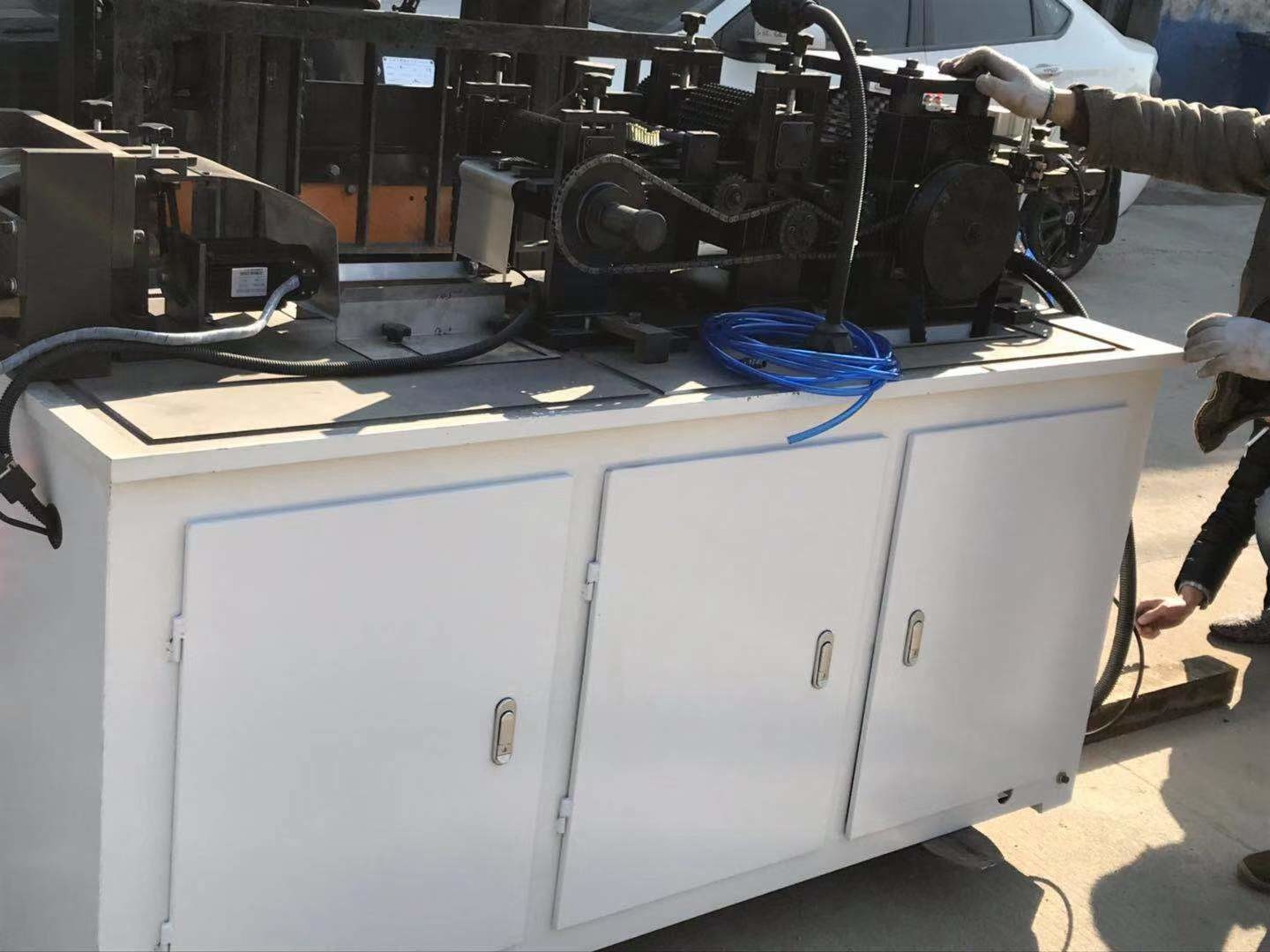

0.6 Mpa 8-200mm Fin Width Radiator Fin Machine Simple Operation
Product features:
1. It can have multi blades,can do maximum 8-10 combination cutting.
2. Automatically cutting and counting
3. It can have 2 rows material rolls machine.
4. Size can be customized
5. It can be programmed.
6. It can have shields or no shields
7. high precision
8. high speed
9. can be customized according to customer requirements of different shapes of fins
Product introductions:
Radiator core fin roll forming making machines is the basic equipment for making radiator core and condenser core. This product is divided into manual core assembly machine, semi-automatic core assembly machine and full-automatic core assembly machine.
Manual core assembly machine: it is mainly used to assemble large cores with core size more than one meter and flat tube rows more than two rows.
Semi automatic core assembly machine: widely used in car and truck radiator core, most of the condenser core, heating radiator core production. Simple operation, fast assembly and high production efficiency. It is the most widely used core assembly machine at present.
Automatic core assembly machine: it can set program to assemble radiator cores of different specifications. It is suitable for large-scale production of radiator factory, with fin machine, automatic tubes laying, automatic fin laying and automatic head plate assembly.
Features: it is suitable for the production requirements of a single model with large quantity.but price is very high.
Product specifications:
after-sale service | yes | mould | can customise |
Air pressure requirements | 0.8Mpa | design style | can customise |
Voltage, power | 220V/50Hz,2.5kw | Driving mode | Pneumatics |
running speed | adjustable | Number of cylinders | 6--8 |
production efficiency | 60sec. | Core size | 900*900*56mm |
Number of preset models | Non. | Workstation | 1 |
Programmable | Non. | Maximum size of head plate | 120mm |
brand name | SUNHOPE | Machine weight | 800kg |
Safety device | radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator | warranty | 12 months |
Size of working station | 900*900mm | Efficiency | About 4-5 Minutes One Core |
About us:
Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1. Does it can change the hob?
The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
2. Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
3. Does the hob can have multiple fins with different width?
Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.
4. Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
