6.5-10mm Tube Pitch Radiator Fin Forming Machine Automotive

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Fin Width 8~200mm (customized) Fin Pitch 1.6~5.0mm
Tooling Life 120~150 Million Corrugations Fin Rolling Speed 1000~4000 Corrugatations Per Minute
Conditions New Protective Shield (customized)
High Light

100mm Width Radiator Fin Forming Machine

,

1.6mm Pitch Radiator Fin Forming Machine

,

100mm Width aluminium fin press machine

Leave a Message
Product Description

 6.5-10mm Tube Pitch Radiator Fin Forming Machine Automotive

Product Descriptions:

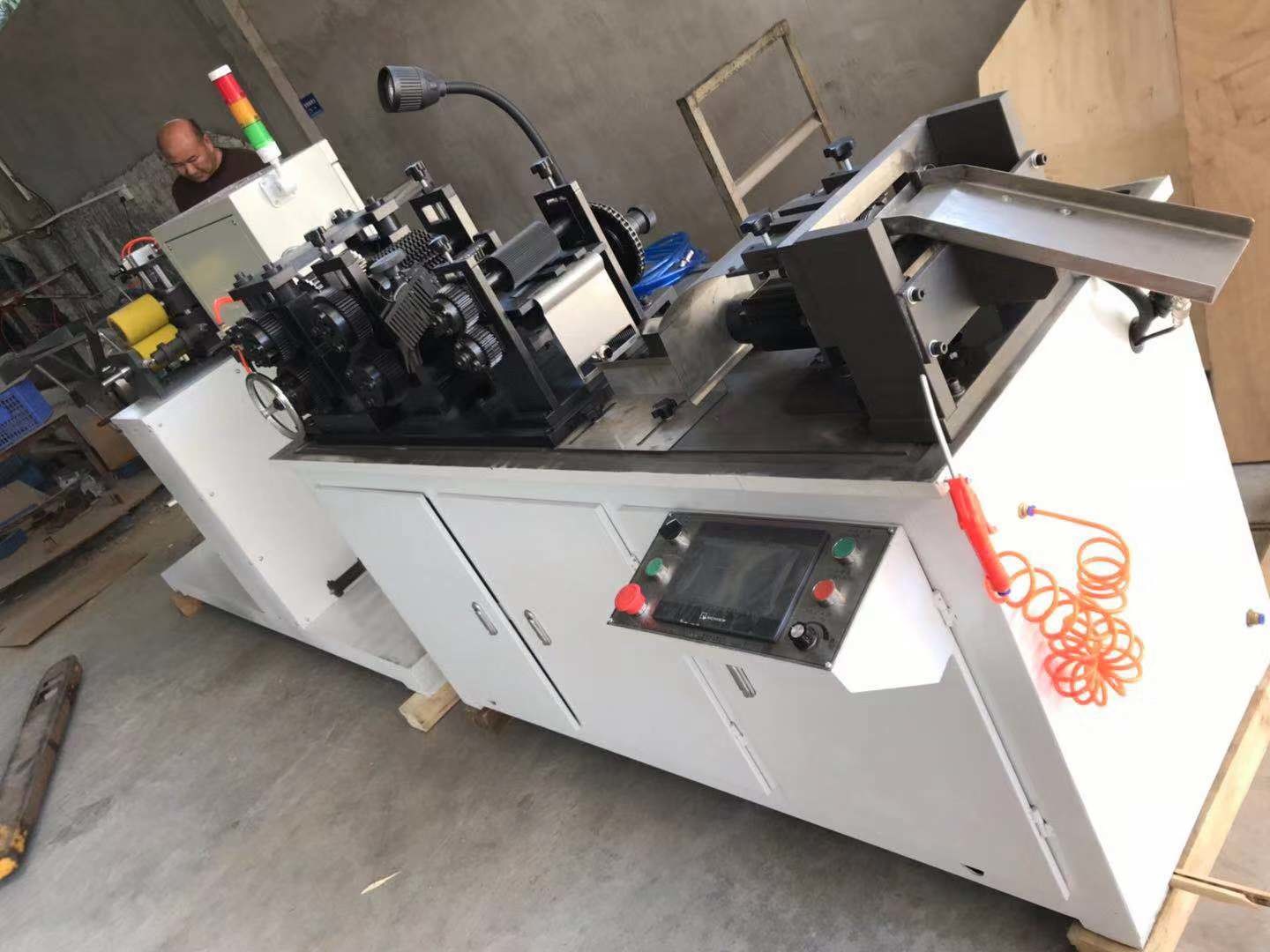

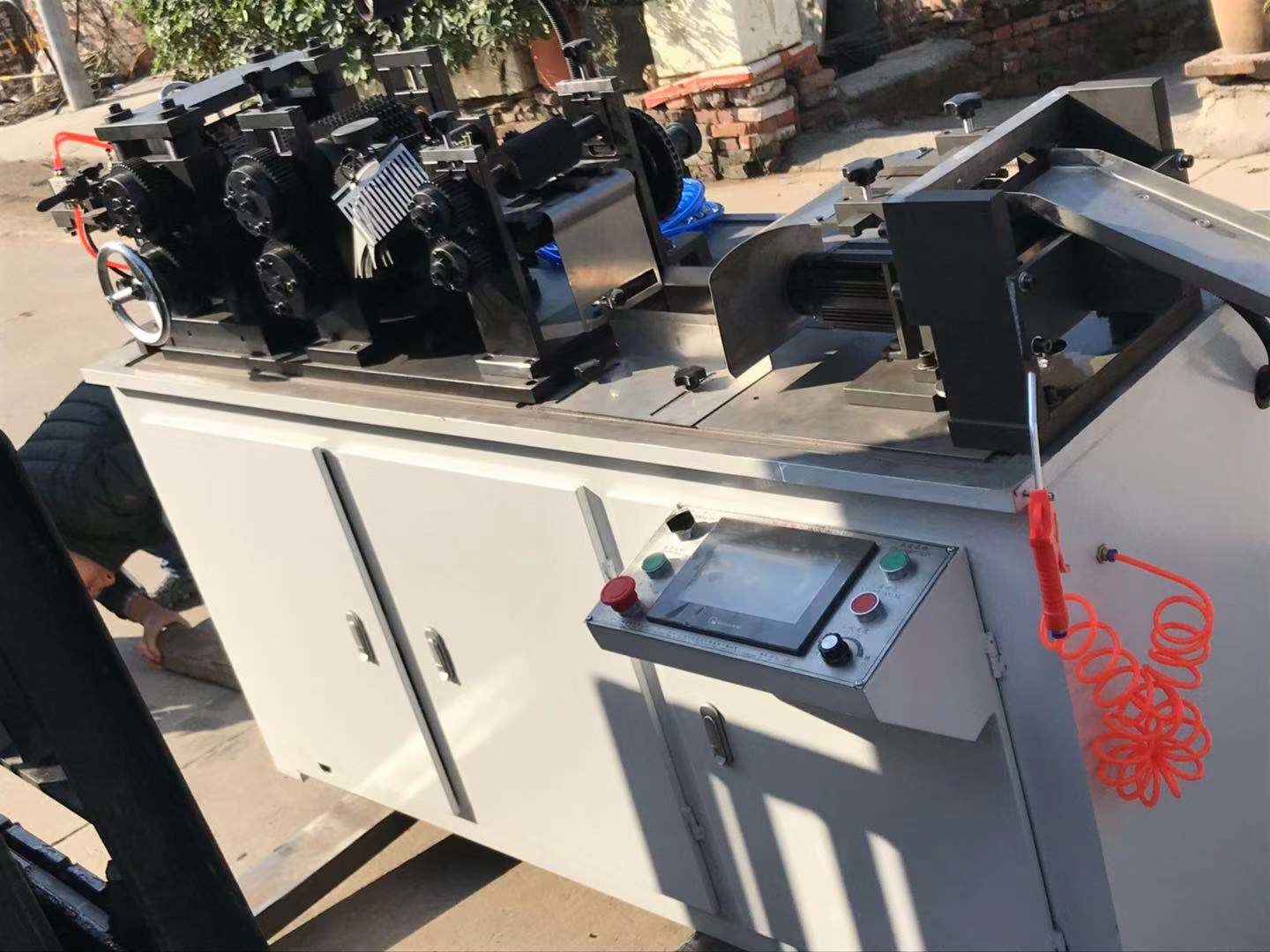

       6.5-10mm Tube Pitch Radiator Fin Forming Machine Automotive is speically designed for forming aluminum foil coil into wave type fins continuously.

      This radiator fin forming machine has many functions such as decoiling, tensioning, feeding, spraying lubricant, fin forming, fin fixing, cutting, auto detecting, etc.

      It is PLC control, inverter speed adjustable, servo feeding, touch screen operation, simple and convenient.

      The fin rolling machine adopts tooling quick changeable design for rolling different fins.





Product technical parameters:

Item Data
Blank material Aluminum alloy foil AA4343/AA3003/AA4343 or single foil
Foil thickness 0.04~0.30mm
Foil reel ID 190~210mm
Foil reel OD 1200mm
Finished fin Fin height 2.0~22mm
Height tolerance +0.03mm, - 0.01mm
Fin height levelness Less than 0.05mm
Fin width 8~200mm
Fin pitch 1.6~5.0mm
Fin pitch tolerance +/-0.10mm
Machine capability Foil feeding speed 0-100m/min
Fin rolling speed 1000-4000 corrugations per minute
Fin cutting speed Max. 60 times per minute
Cutting tolerance +/- 0 corrugation (on top of corrugation)
Tooling material Forged high speed steel (W6)
Life 120~150 million corrugations
Total motor power 3.4kW
Compressed air source 0.6MPa
Machine dimension About 5000 x 900 x 1800mm
Machine weight About 3000kg







Product advantages:

high precision

high speed

can be customized according to customer requirements of different shapes of fins







6.5-10mm Tube Pitch Radiator Fin Forming Machine Automotive 0







About us:

   Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.



2.Does one set of hob can use different thickness finned materials?

Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.



3.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.



4.Does it can change the hob?



The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
