Programmable 8-200mm Fin Width Radiator Fin Forming Machine With Changeable Hob

Place of Origin china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Programmable YES Cutting Mechanic Automatic
Protective Shield No Blade Single Or Multi Combined
Fin Length 3.5m Weight 800KG
High Light

3.5m Length Radiator Fin Forming Machine

,

Programmable Radiator Fin Forming Machine

,

3.5m Length fin tube machine

Leave a Message
Product Description

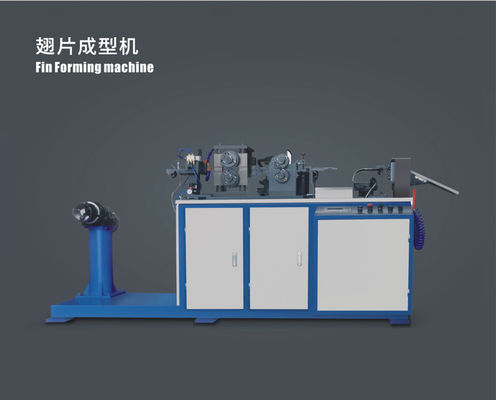

Programmable 8-200mm Fin Width Radiator Fin Forming Machine With Changeable Hob

Product introductions:

The Aluminium fin forming machine with changeable hob  is used to produce heat exchange wavy fins with or without windows.



The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.



The copper fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.



Product features:

1.It can have multi blades,can do maximum 8-10 combination cutting.

2.Automatically cutting and counting

3.It can have 2 rows material rolls machine.

4.Size can be customized

5.It can be programmed.

6.It can have shields or no shields





Product specifications:

Voltage, power 220V/50Hz,2.5kw design style can customise
running speed adjustable Driving mode Servo pneumatic
production efficiency 60sec. Fin Type: Radiator Fin
Number of preset models Non. Workstation 1
Programmable yes Machine weight 800kg
shape unregular warranty 12 months
after-sale service yes mould can customise
brand name SUNHOPE Fin Height: 8mm
Speed: 100 M/min Fin Thickness: 0.08mm

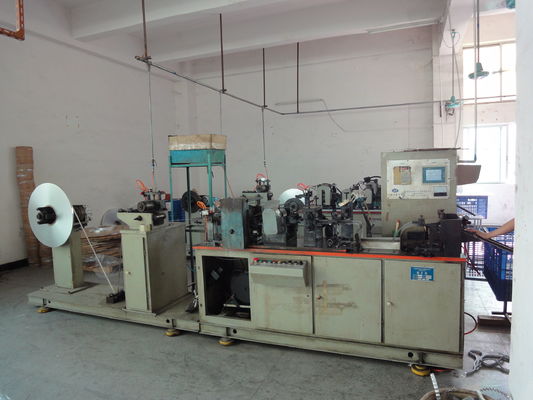

Programmable 8-200mm Fin Width Radiator Fin Forming Machine With Changeable Hob 0







About us:

       With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the   supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.



FAQ:

1.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.



2.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.



3.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.



4.Does one set of hob can use different thickness finned materials?

Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.
