5-8mm Fin Height 0.08mm Aluminium Thick Radiator Fin Forming Machine With Protective Cover

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Producing Material Aluminium Blade Single Or Multi Combined
Cutting Mechanic Automatic Protective Shield Yes
Programmable Yes Weight 800KG
High Light

8mm Height Radiator Fin Forming Machine

,

0.08mm Thick Radiator Fin Forming Machine

,

8mm Height fin press machine

Leave a Message
Product Description

Fin forming machine with acrylic protective cover

Products introductions:

    The Fin forming machine with acrylic protective cover produced by our company adopts the overall structure of feeding, introduction, fin forming, anti-blocking device, wave sparser, denser, wave puller, and shaping. Fully automatic fin forming machine forms by replacing the integral quick-change fin

     The materials of the fin forming blades are: hard alloy, cobalt-containing high-speed tool steel, tungsten-molybdenum high-speed tool steel for users to choose from. The fin forming blades are all made of forgings and processed by special processing technology. The service life of the blades of punching materials can be extended by 100-0.5 billion peaks.



Fin forming tool (hob):

  • Divided into fin materials according to the tool processing:

Aluminum fin forming tool, copper fin forming tool, stainless steel forming tool

  • According to the shape of the fin rolled by the cutter roll, it is divided into:

U-shaped arc fin forming tool, V-shaped arc fin forming tool, flat top fin forming tool, staggered fin forming tool

  • According to the shape of the fin window rolled out by the cutter roll, it is divided into:

Open shutter fin forming tool, non-open shutter fin forming tool

Dimples, perforated fin forming tools, non-opening ribbed fin forming tools







Product features:

1.It can have multi blades,can do maximum 8-10 combination cutting.

2.Automatically cutting and counting

3.It can have 2 rows material rolls machine.

4.Size can be customized

5.It can be programmed.

6.It can have shields or no shields

7.high precision

8.high speed

9.can be customized according to customer requirements of different shapes of fins







Product specifications:

design style can customise Voltage, power 220V/50Hz,2.5kw
Driving mode Servo pneumatic running speed adjustable
Fin Type: Radiator Fin production efficiency 60sec.
Workstation 1 Number of preset models Non.
Machine weight 800kg Programmable yes
warranty 12 months shape unregular
mould can customise after-sale service yes
Fin Height: 8mm brand name SUNHOPE
Fin Thickness: 0.08mm Speed: 100 M/min
Core Row Number: 1-4 Rows

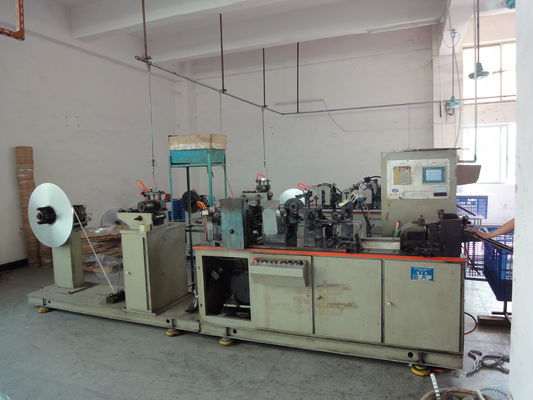

5-8mm Fin Height 0.08mm Aluminium Thick Radiator Fin Forming Machine With Protective Cover 0





About us:

      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.



2.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.



3.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.



4.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
