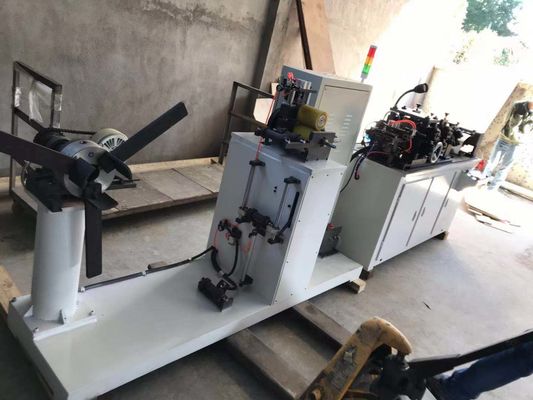

2500W 8mm Fin High Radiator Fin Forming Machine High Precision

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Weight 800KG Core Row Numbers 1-4 Rows
Programmable Yes Blade Single Or Multi-combined
Protective Shield Can Be Customized Cutting Automatic
High Light

8mm High Radiator Fin Forming Machine

,

2500W Radiator Fin Forming Machine

,

8mm High Radiator Fin Machine

Leave a Message
Product Description

8mm Fin high aluminium radiator fin making machine

Product introductions:

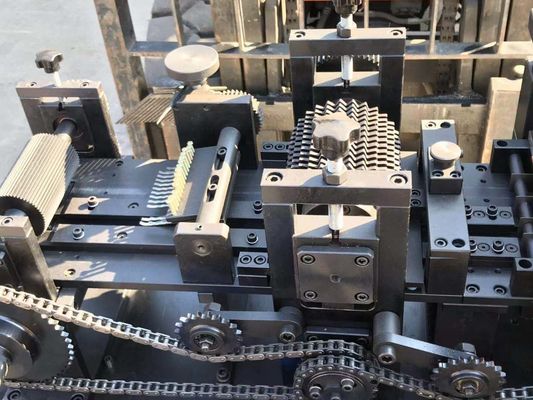

     8mm high aluminium radiator fin making machine, fin forming tool, using feeding, import, fin forming, anti blocking device, wave sparger, concentrator, wave puller, integral structure. The automatic fin forming machine processes various specifications of aluminum fin, copper fin and stainless steel fin heat exchanger products by replacing the integral fast changing fin forming tool.

      There are three kinds of materials for fin forming blades: cemented carbide, cobalt bearing high speed tool steel and tungsten molybdenum high speed tool steel for users to choose from. All fin forming blades are made of forgings. After special processing, the service life of blades made of forgings can be extended by 100-50 million peaks compared with those made of sheet metal.



Product features:

1.It can have multi blades,can do maximum 8-10 combination cutting.

2.Automatically cutting and counting

3.It can have 2 rows material rolls machine.

4.Size can be customized

5.It can be programmed.

6.It can have shields or no shields

7.high precision

8.high speed

9.can be customized according to customer requirements of different shapes of fin





Product quick details:

Voltage, power 220V/50Hz,2.5kw design style can customise
running speed adjustable Driving mode Servo pneumatic
production efficiency 60sec. Fin Type: Radiator Fin
Number of preset models Non. Workstation 1
Programmable yes Machine weight 800kg
shape unregular warranty 12 months
after-sale service yes mould can customise
brand name SUNHOPE Fin Height: 8mm
Speed: 100 M/min Fin Thickness: 0.08mm
Core Row Number: 1-4 Rows





2500W 8mm Fin High Radiator Fin Forming Machine High Precision 0







About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

       At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.



2.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.



3.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.



4.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
