800KG 220V Radiator Fin Forming Machine With High Speed

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCore Row Numbers | 1-4 Rows | Weight | 800KG |
---|---|---|---|
Programmable | Yes | Cutting | Mechanic Cutting |
Blade | Single Or Multi-combined | Protective Shield | Can Be Customized |
Highlight | 100 M/min Radiator Fin Forming Machine,220V Radiator Fin Forming Machine,100 M/min fin punching machine |

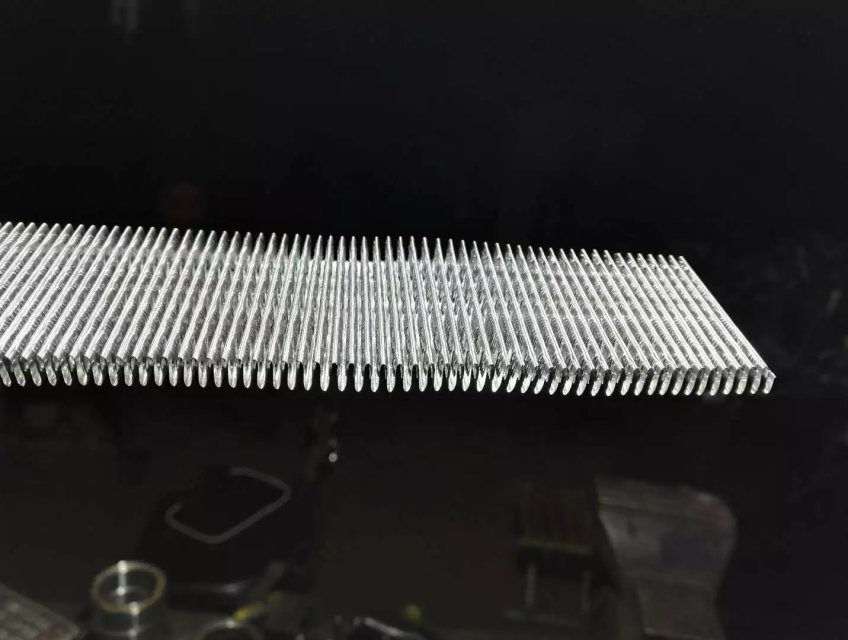

High speed aluminium radiator fin forming machine
Product introductions:
The High speed radiator fin forming machine is decided by the rolling knife. The rolling knife is equipped with gear type blades. Each blade thickness at 0.8-1.8mm, and it equals the louver distance. The degree of parallelism of the blades should be no greater than 0.005mm, and the tolerance for dimensional discrepancy of each blade pair should be within ±0.003mm.
Product Structural Characteristics:
It is comprised of coil rack, guidance belt, strip pressing device, precision knife stand, rolling knife, spraying lubrication device, anti-intertwisting device, guidance damping device, fin collection wheel, fin collection stand, and cutting device. The machine employes a combined electrical, mechanical and pneumatic control, which allows an automatic cycle of strip feeding, strip pressing, spraying lubrication, fin making and louver opening, fin collection, fin counting, and cutting. The main shaft is driven by a motor and the speed is controlled steplessly by an imported inverter. The control cabinet displays the machine frequency, fin count, and productivity, and allows both automatic and manual working status. The main shaft is controlled by an inching button. There is also a strip breakage indicator.
Product features:
1.It can have multi blades,can do maximum 8-10 combination cutting.
2.Automatically cutting and counting
3.It can have 2 rows material rolls machine.
4.Size can be customized
5.It can be programmed.
6.It can have shields or no shields
7.high precision
8.high speed
9.can be customized according to customer requirements of different shapes of fins
Product specifications:
Fin Type: | Radiator Fin | production efficiency | 60sec. |
Workstation | 1 | Number of preset models | Non. |
Machine weight | 800kg | Programmable | yes |
warranty | 12 months | shape | unregular |
mould | can customise | after-sale service | yes |
Fin Height: | 8mm | brand name | SUNHOPE |
Fin Thickness: | 0.08mm | Speed: | 100 M/min |
Core Row Number: | 1-4 Rows | Voltage, power | 220V/50Hz,2.5kw |
design style | can customise | running speed | adjustable |
Driving mode | Servo pneumatic |
About us:
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
2.Does one set of hob can use different thickness finned materials?
Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.
3.Does the hob can have multiple fins with different width?
Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.
4.Does it can change the hob?
The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
