900*900mm Workstation 0.8Mpa Core Assembly Machine Multirow

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage, Power 220V/50Hz,2.5kw Size Can Customize
Driving Mode Pneumatics Or Servo Pneumatic Features Can Adapt To Different Core Size
Size Of Working Station Usually 900*900mm Number Of Tube Usually 1 Row Or 2 Rows
High Light

900*900mm workstation core assembly machine


0..8Mpa core assembly machine


0..8Mpa core builder machine

Leave a Message
Product Description

Big size core builder machine for radiator tank

Product introduction:

     Big size core builder assembly machine is the basic equipment for making radiator core and condenser core. This product is divided into manual core assembly machine, semi-automatic core assembly machine and full-automatic core assembly machine.


Advantages of big size Radiator Core Builder:

1) The flat tubes are stocked in a tube magazine, and are distributed through a servo tube distribution device. The overall comb teeth structure could ensure the flat tube positioning accuracy.

2) The radiator core builder is designed with 2-hand push buttons for safety operation.

3) The radiator core builder is easy for operation, adjustment, and tooling replacement.

4) The left and right push mechanism, and clamping mechanism are controlled by the hydraulic cylinders.

5) The flat tubes are distributed through a servo tube distribution device.

6) The radiator core assembly machine can be equipped with the header flaring mechanism.



Product specifications:

mould can customise shape unregular
design style can customise after-sale service yes
Driving mode Pneumatics Air pressure requirements 0.8Mpa
Number of cylinders 6--8 Voltage, power 220V/50Hz,2.5kw
Core size 1000*900*56mm running speed adjustable
Workstation 1 production efficiency 60sec.
Maximum size of head plate 120mm Number of preset models Non.
Machine weight 800kg Programmable Non.
warranty 12 months brand name SUNHOPE
Efficiency About 4-5 Minutes One Core Safety device

radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator



Quality assurance

  • Every production process has a special person to test to ensure quality
  • Have professional engineers to check the quality
  • All products have passed CE, FCC, ROHS and other certifications

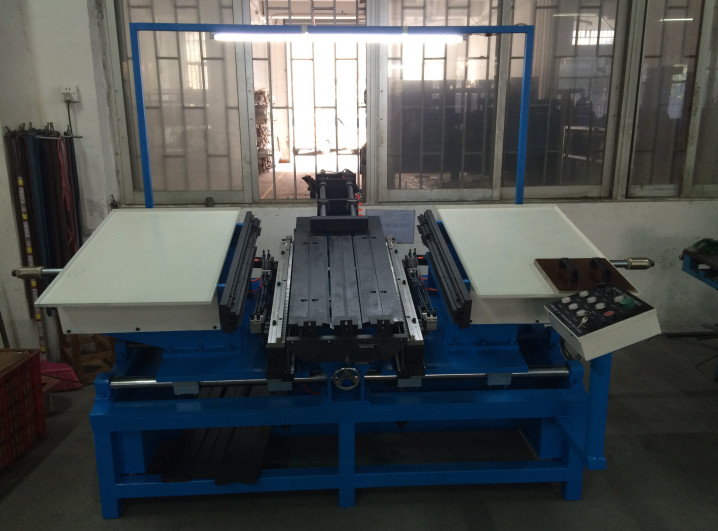

900*900mm Workstation 0.8Mpa Core Assembly Machine Multirow 0900*900mm Workstation 0.8Mpa Core Assembly Machine Multirow 1


About us:

    With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

    In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.


2.Is it belongs to the customized products?

We can customize the size of the core according to the actual production requirements.


3.Does it can use different specifications of tubes in the same machine at the same time?

Yes ,it can install separately the size of 16,22,26,32mm and so on of different tubes.


4.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.


5.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?

No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.
