220V Tube Radiator Core Builder Machine

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Size Can Customize Number Of Working Station 1
Features Can Adapt To Different Core Size Voltage, Power 220V/50Hz,2.5kw
Number Of Tube Usually 1 Row Or 2 Rows Driving Mode Pneumatics Or Servo Pneumatic
High Light

W32mm tube Radiator Core Builder Machine


L500mm tube Radiator Core Builder Machine


W32mm tube core assembly machine

Leave a Message
Product Description

220V Tube Radiator Core Builder Machine

Product applications:

     The machine is used for assembling auto radiator cores. The machine has the advantages of stable and reliable working prformance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled condenser core has a high assembling accuracy and a good apperance, which ensures a better brazing effect in the brazing furnace.


Product features:

1. can suitable to different types of tube

2. can adapt to different size of cores

3. It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.


Product parameters:

Radiator core assembled per time: 1 piece


Center-to-center distance: decided by the customer
Flat tube length: 350-800mm;


Flat tube quantity: 75 pieces or more (decided by the customer)


Flat tube width: 20-32mm


Flat tube layer: 1-2 layers (decided by the customer)


Assembling accuracy: diagonal line size differrence kept within ±1.5mm


Total power: 5.5kw


Assembling time per core: about 60 seconds


Equipment weight: 1.8T

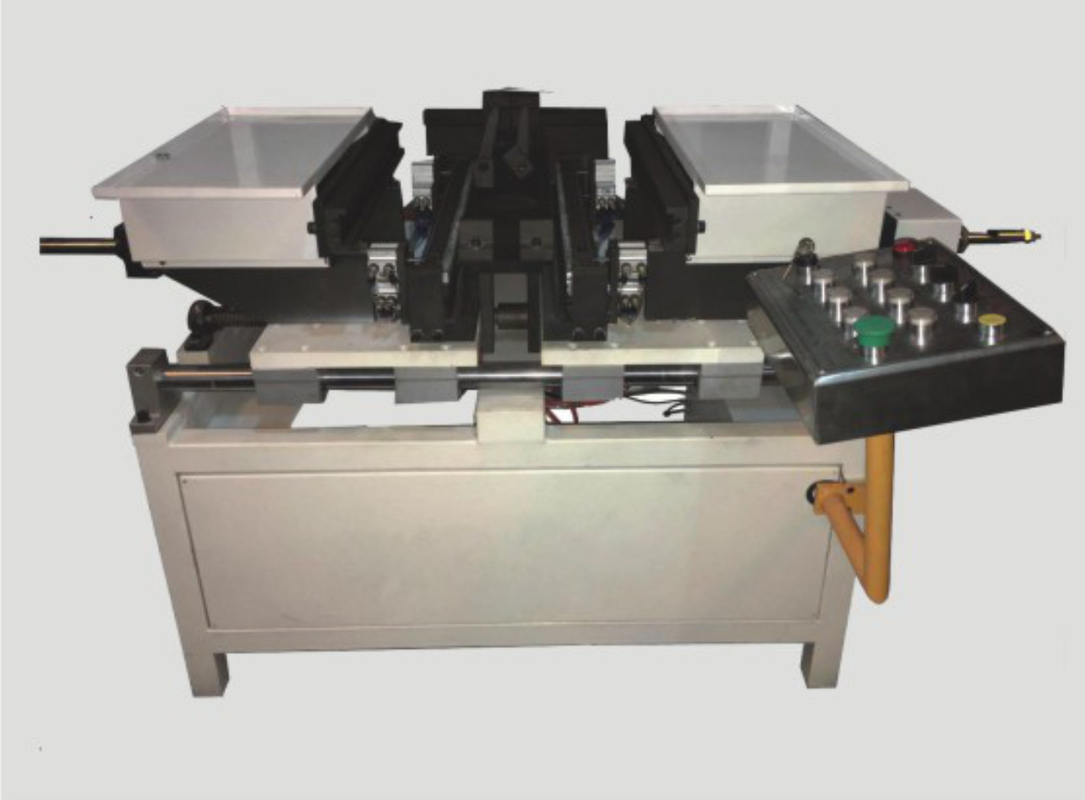

220V Tube Radiator Core Builder Machine 0220V Tube Radiator Core Builder Machine 1



About us:

    Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.



1. Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?

No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.


2. Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.


3. How long can finish assembling the radiator core by the semi automatic core building machine?

The experienced workers can assemble one aluminium core builder in 3-5 minutes,depends on the size of core.


4. What’s the requirements for assembling the head plate of automatic core building machine?

The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
