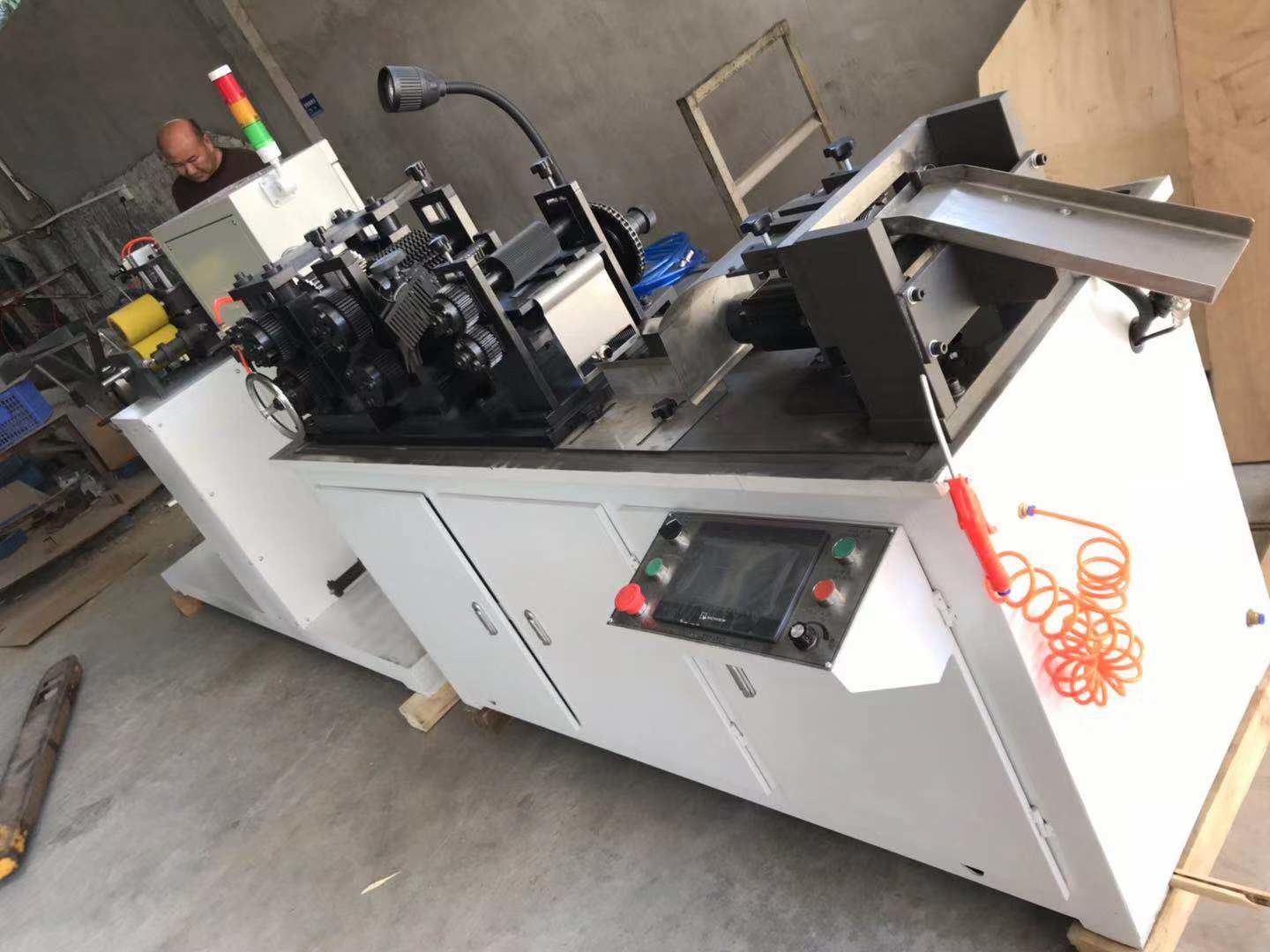

8mm High Radiator Fin Forming Machine

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Blade Single Or Multi Combined Cutting Mechanic Automatic
Protective Shield No Programmable Yes
Fin Length 3.5m Fin Width 1m
Fin Height 1.5
High Light

16mm Wide Radiator Fin Forming Machine


8mm High Radiator Fin Forming Machine


8mm High aluminium fin press machine

Leave a Message
Product Description

16mm wide 8mm high, single size aluminium fin machine

Product introductions:

      The 16mm wide 8mm high, single size aluminum fin machine and its blades are all made by our own, which makes our machine cost more competitive in the market.

      The fin forming roller is changeable, and different fin models can be produced on the same machine.

      The minimum fin thickness for the wavy fin is 0.07mm which saves the customer’s cost.

     The equipment adopts replacable devices and one fin machine can be used to produce different fin models. The operator could change the fin forming roller and other necessary parts, and make the necessary adjustments to produce different fin models.

     The aluminum fin machine is used to produce heat exchange wavy fins at fin height 8mm. The electrical control system of the fin making machine relies on PLC, inverter, AC servo control, and touch screen control. The operator could set up the parameters on the touch screen.



Product quick details:

Voltage, power 220V/50Hz,2.5kw design style can customise
running speed adjustable Driving mode Servo pneumatic
production efficiency 60sec. Fin Type: Radiator Fin
Number of preset models Non. Workstation 1
Programmable yes Machine weight 800kg
shape unregular warranty 12 months
after-sale service yes mould can customise
brand name SUNHOPE Fin Height: 8mm
Speed: 100 M/min Fin Thickness: 0.08mm
Core Row Number: 1-4 Rows




Customer Service

  • Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  • Your inquiry related to our products or price will be replied in 24hrs.
  • Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  • one-year warranty
  • Buyer can dispatch technician to our factory for free training before delivery.
  • For essential equipment failure, we will arrange our engineer head to local site to help trouble shooting, also provide online technical support for the whole life.



8mm High Radiator Fin Forming Machine 0




About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

      At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




1.Does it can change the hob?

The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.


2.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.


3.Does the hob can have multiple fins with different width?

Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.


4.Does one hob can have multiple fin sizes with different heights?

No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
