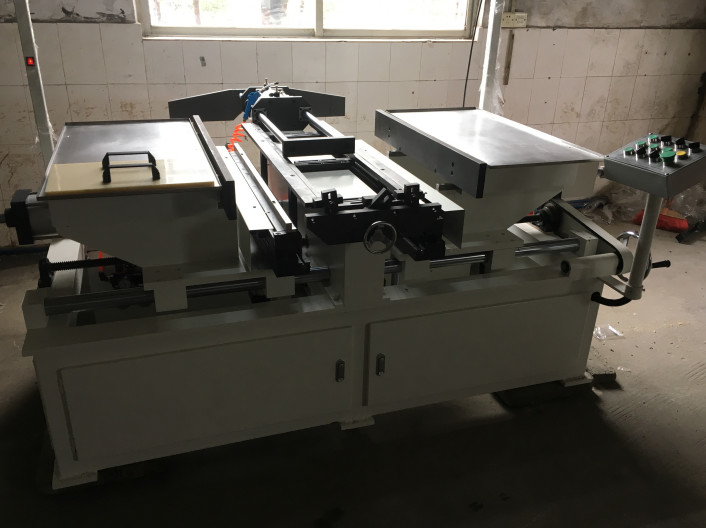

Sunhope Radiator Core Builder Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSize Of Working Station | Usually 900*900mm | Features | Can Adapt To Different Core Size |
---|---|---|---|
Driving Mode | Pneumatics Or Servo Pneumatic | Core Size | Can Customize |
Rows Of Tube | Usually 1 Row Or 2 Rows | Voltage, Power | 220V/50Hz,2.5kw |
Highlight | Sunhope Radiator Core Builder Machine,220V Radiator Core Builder Machine,220V radiator core builder |
Condenser core builder machine for automobile tank
Product introductions:
The condenser core builder machine is used for assembling auto radiator cores. The machine has the advantages of stable and reliable working prformance, easy operation, low noise, accurate positioning
of flat tube center, and even distribution of fins.
The assembled condenser core has a high assembling accuracy and a good apperance, which ensures a better brazing effect in the brazing furnace.
Product advantages:
1) The flat tubes are stocked in a tube magazine, and are distributed through a servo tube distribution device. The overall comb teeth structure could ensure the flat tube positioning accuracy.
2) The radiator core builder is designed with 2-hand push buttons for safety operation.
3) The radiator core builder is easy for operation, adjustment, and tooling replacement.
4) The left and right push mechanism, and clamping mechanism are controlled by the hydraulic cylinders.
5) The flat tubes are distributed through a servo tube distribution device.
6) The radiator core assembly machine can be equipped with the header flaring mechanism.
Product features:
1.can suitable to different types of tube
2.can adapt to different size of cores
3.It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.
Product Specifications:
warranty | 12 months | Safety device | radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator |
Efficiency | About 4-5 Minutes One Core | Air pressure requirements | 0.8Mpa |
mould | can customise | Voltage, power | 220V/50Hz,2.5kw |
design style | can customise | running speed | adjustable |
Driving mode | Pneumatics | production efficiency | 60sec. |
Number of cylinders | 6--8 | Number of preset models | Non. |
Core size | 900*900*56mm | Programmable | Non. |
Workstation | 1 | shape | unregular |
Maximum size of head plate | 120mm | after-sale service | yes |
Machine weight | 800kg | brand name | SUNHOPE |
About us:
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.How long can finish assembling the radiator core by the semi automatic core building machine?
The experienced workers can assemble one aluminium core builder in 3-5 minutes,depends on the size of core.
2.What’s the requirements for assembling the head plate of automatic core building machine?
The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
3.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?
No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.
4.Does it can assemble different heights of fins in the same machine ?
No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.
