Automotive Condenser Core Assembly Machine | Automatic Tube Arranging & Heat Exchanger Core Building Equipment

The Automotive Condenser Core Assembly Machine is a precision-engineered solution developed for automotive condenser and aluminum heat exchanger manufacturers. It is designed to accurately assemble key components including tubes, fins, side plates, and header plates into a complete condenser core, ensuring stable positioning, consistent quality, and reliable performance before the brazing process.

Equipped with a servo-controlled automatic tube arranging system, this machine improves assembly accuracy while reducing dependence on manual operations. The precise tube positioning technology helps manufacturers achieve more consistent production results, reduce assembly errors, and improve overall manufacturing efficiency.

The equipment is suitable for automotive condenser production, radiator manufacturing, and other aluminum heat exchanger applications. With adjustable parameters and customizable configurations, it can meet different core sizes, tube specifications, and production requirements, providing a flexible solution for manufacturers upgrading their production capabilities.

Traditional manual condenser core assembly processes often face challenges such as inconsistent tube positioning, unstable assembly quality, and high labor requirements. These factors can affect production efficiency and increase quality control pressure.

SUNHOPE's Automatic Condenser Core Assembly Machine helps manufacturers overcome these challenges through precise control and optimized assembly processes.

The servo-controlled tube arranging system ensures accurate tube positioning and consistent spacing, helping maintain stable core quality during production.

By automating critical tube arranging operations, the machine reduces repetitive manual work and improves production standardization.

Precise mechanical control ensures reliable assembly performance, making it suitable for continuous production environments.

The machine supports customized core dimensions, tube spacing, tube thickness, and fin specifications to meet different condenser designs.

The machine is equipped with a servo-driven tube arranging system that automatically positions tubes according to preset requirements. This improves tube placement accuracy, reduces manual positioning errors, and ensures consistent assembly quality.

By integrating tube delivery, automatic tube arranging, and header plate installation functions, the equipment provides stable and reliable assembly performance for automotive condenser manufacturing.

The machine supports various aluminum heat exchanger structures through adjustable parameters, allowing manufacturers to adapt the equipment for different condenser models and production requirements.

The servo drive system provides accurate movement control, smooth operation, and fast adjustment during production changeovers, helping reduce downtime and improve manufacturing efficiency.

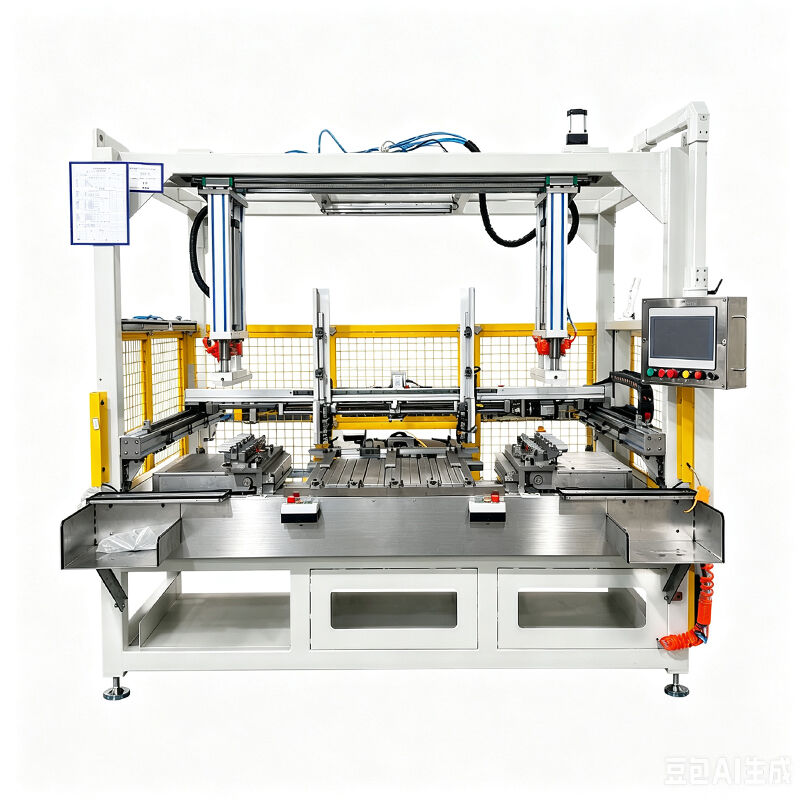

Detail View of Servo Tube Arranging Mechanism and Core Assembly Structure

The Automatic Condenser Core Assembly Machine completes the core preparation process through the following steps:

Tubes are manually placed into the vertical tube magazine for continuous feeding.

The servo-controlled system automatically arranges tubes according to the preset condenser core structure, ensuring accurate positioning.

Header plates are installed automatically or manually according to different production requirements.

Fins are manually positioned to complete the core stacking process.

After assembly, the completed condenser core is ready for subsequent processes such as vacuum brazing, crimping, and leak testing.

The Automotive Condenser Core Assembly Machine is suitable for manufacturing:

• Automotive condenser cores
• Aluminum heat exchanger cores
• Radiator cores
• Charge air cooler cores
• HVAC heat exchanger components

It is widely used by manufacturers producing aluminum brazed heat exchangers for passenger vehicles, commercial vehicles, and industrial cooling systems.

With over 15 years of experience in radiator and heat exchanger manufacturing solutions, SUNHOPE provides complete equipment, production support, and technical services for global customers.

Our expertise covers:

• Automotive radiator manufacturing
• Condenser production solutions
• Aluminum heat exchanger assembly
• Complete production line integration

Our product range includes:

• Radiator Core Assembly Machines
• Condenser Core Assembly Machines
• Fin Forming Machines
• Aluminum Brazing Furnaces
• Leak Testing Equipment
• Radiator and Condenser Components

Beyond equipment supply, SUNHOPE provides installation guidance, operator training, and technical support to help customers establish efficient and reliable heat exchanger production lines.

Whether you are building a new factory, expanding production capacity, or upgrading an existing production line, SUNHOPE can provide a complete radiator and condenser manufacturing solution tailored to your requirements.

The machine is used to assemble automotive condenser cores by accurately arranging tubes and combining fins, side plates, and header plates before brazing and final processing.

It helps manufacturers improve assembly accuracy, reduce manual errors, and achieve more stable production quality.

Yes. The machine uses a servo-controlled automatic tube arranging system to accurately position tubes according to preset parameters.

This improves tube spacing consistency and ensures reliable condenser core assembly performance.

The standard model supports:

• Core Height: 300–900mm
• Core Width: 300–600mm

Tube spacing, tube thickness, fin height, and other specifications can be customized according to customer requirements.

Yes. SUNHOPE provides customized solutions based on different condenser structures, production capacity requirements, and manufacturing processes.

Customization options include machine configuration, core dimensions, and assembly specifications.

Yes. SUNHOPE provides complete automotive condenser manufacturing solutions, including condenser core assembly machines, fin forming machines, aluminum brazing furnaces, leak testing equipment, and related heat exchanger components.

We also provide installation guidance, operator training, and technical support to help customers establish efficient and reliable production lines.

Looking for an efficient way to improve your condenser core production?

Contact SUNHOPE for customized equipment solutions, technical consultation, and complete heat exchanger manufacturing support.

We help global customers build reliable, efficient, and scalable radiator and condenser production lines.
