Three Panels Ultrasonic Cleaning Machine For Cleaning Parts Oil Cooler Header Plate

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Cleaning Type Industrial Ultrasonic Cleaner Shape Rectangle
Fuel Electric Technique Ultrasound
Core Components PLC, Motor Driving Mode Servo Pneumatic
High Light

2.5kw Ultrasonic Cleaning Machine

,

PLC Ultrasonic Cleaning Machine

,

60sec Ultrasonic Cleaning Machine

Leave a Message
Product Description

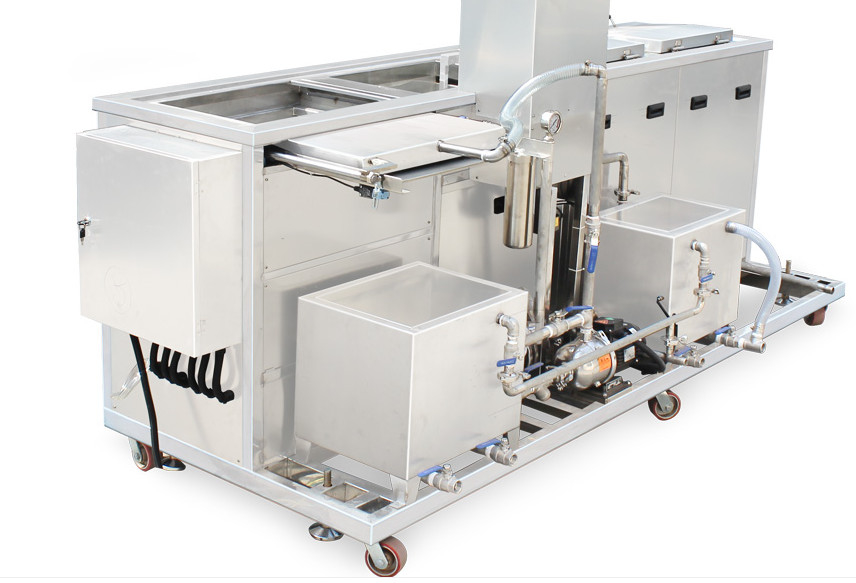

Three Ultrasonic panels Ultrasonic cleaning machine for cleaning parts ,like oil cooler,header plate,core

Product technology:

A. Generator part 1.Adopt digital "Kamson" advanced ultrasonic generation technology, power adjustable (10% ~ 100%);Cleaning time adjustable: 0 ~ 59Min;LED digital display intuitively grasp the working state;The core power components are imported from the United States.More stable performance, long life.

2.Advanced automatic wide-band scanning technology, select different band width and scanning frequency, improve the performance of the workpiece of the transducer, eliminate standing wave, improve the ultrasonic energy distribution, higher efficiency and more stable performance than the ordinary ultrasonic generator.

3. Computer digital film panel switch, simple operation, with automatic program memory function.

4. Anticorrosive design, in the acid and alkali fog, wet harsh environment has a certain special application ability, when the output is abnormal or the temperature of the original is abnormally high, will automatically stop the comprehensive protection.

5. Split type ultrasonic generator using coaxial band high frequency shielded cable connection, signal transmission effective 100% no loss, strong resistance to dry and torsion, easy maintenance.

6. Arbitrary switching of working mode: normal long-term working mode, frequency display working mode, time setting working mode.7 safety protection: overcurrent protection, circuit break protection, short circuit protection, overheating protection and other functions.8. Split type digital generator, more convenient than integrated control, more practical, longer life!





Product specifications:
design style can customise Voltage, power 220V/50Hz,2.5kw
Driving mode Servo pneumatic running speed adjustable
ultrasonic power 10080W(8400W) cleaning efficiency 60sec.
Workstation 1 ultrasonic HZ 28KHZ
Machine weight 300kg Programmable yes
warranty 12 months shape unregular
internal size 1200×600×930mm after-sale service yes
external size 1400×820×1130mm brand name SUNHOPE







Product advantages:

1.Short wash process leading to reduced time spent in cleaning

2.No manual labor required. An operator is not required when the machine is cleaning the mould

3.High levels of cleanliness give longer life in production

4.No abrasion of precise edges and surfaces gives longer mould life

5.No solvents needed because of aqueous process

6.Suitable for all moulds, large and small



Three Panels Ultrasonic Cleaning Machine For Cleaning Parts Oil Cooler Header Plate 0





Company introduction:



      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

      With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Why do you choose our company to buy the radiator parts?

Our company manufactures and develops hardware moulds by ourselves,we owes over 200 different specifications moulds of head plates ,which covers most of hot sale cars model in the market.



2.Why do you provide the producing equipment of radiator at the same time?

Our company has over 10 years experience in manufacturing the radiator,we are very familiar with all kinds of performance of equipment in the process of manufacturing the radiator.We are able to introduce the customers what’s the best equipment for them according to our experience.



3.Does your company provide after-sales service to the equipment?

Our company has a long term working relationship with the equipment provider,we are very happy to offer the best after-service to our customers.



4.Does the after-sales service provided by your company have any advantages?

Because we are also the users of equipment,we have a better understanding in the potential problem which maybe appears in the process of production of equipment.We can provide the fastest and right solution for our customers.



5.What’s the advantages of your company?

Our company makes our effort to provide the one-stop service to our customers who are going to develop manufacturing the radiators,which is from designing and setting up the factory , completing set of equipment to the supply of all kinds of components of radiators.All of this can be one-stop procurement in our company.We make sure the components and the production equipment can be match perfectly so that can manufacture the qualified and high quality products.
