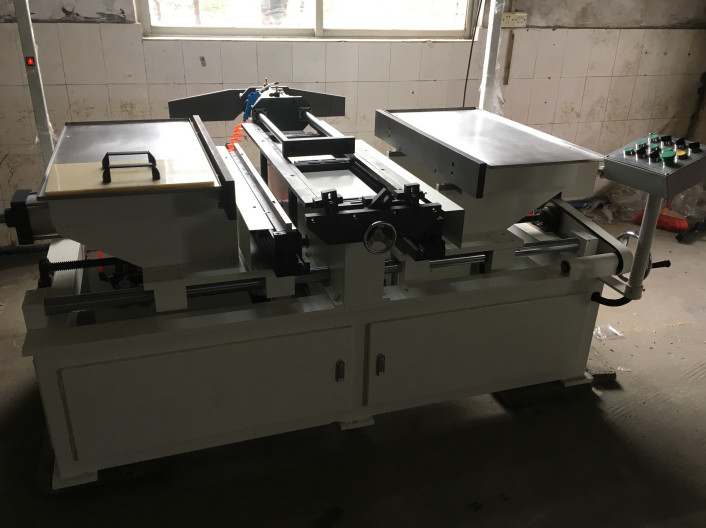

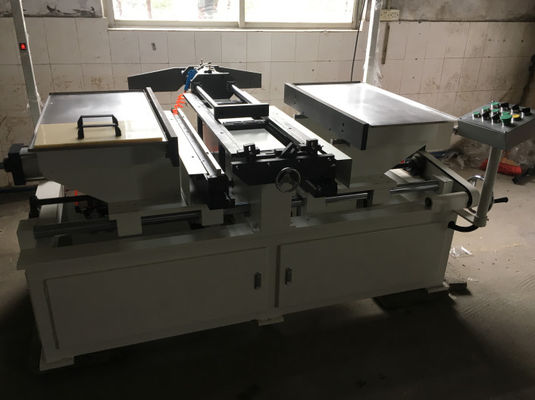

Max 8mm Fin Height Core Assembly Machine

  • Max 8mm Fin Height Core Assembly Machine
  • Max 8mm Fin Height Core Assembly Machine
  • Max 8mm Fin Height Core Assembly Machine
  • Max 8mm Fin Height Core Assembly Machine
Place of Origin Guangdong.China
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conditions NEW Fin & Tube Collocating Time 1 Second Per Collocation
Voltage, Power 220V/50Hz,2.5kw Applicable Core Radiator Core, Condenser Core
Core Components PLC, Motor Core Assembling Speed Around 60 Cores Per Hour
Highlight

35mm Thickness core assembly machine

,

14500w core assembly machine

,

35mm Thickness radiator core builder
Leave a Message
Product Description

Automatic radiator core assembling machine with tube dispenser for car & vehicle radiator core assembly

Product features:

- Universal chassis adapting to various size cores

- For different pitch only change pitch control tooling (combing device)

- PLC control +HMI operation

- Safety measures are provided such as safety raster, alarming lamp and buzzer

- Servo driven header plate assembling and core clamping

- Servo driven dispenser applying oval tubes twice automatically



Product parameters:

Item Data
Distance between header plates (core width) 350-750mm (customized)
Distance between side plates (core height) 150-680mm (customized)
Thickness of built core 16~48mm (customized)
Core assembling precision Core diagonal length error ± 1.0mm
Core height error ±1.0mm
Core width error ±1.5mm
Clearance between fin and header plate 2±1mm

Machine running cycle

(one cycle, excluding tube & fin applying)

 Less than 30s
Main die changing speed Less than 30 minutes
Total motor power Less than 4.5kW
Air source 0.6~0.8MPa, 0.1m3/min
Machine dimension About 2100 x 1800 x 1700mm



Max 8mm Fin Height Core Assembly Machine 0Max 8mm Fin Height Core Assembly Machine 1



About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    The main products are radiator crimping machine,core builder machine, radiator fin forming machine,ultrasonic cleaning machine,vacuum plastic packaging machines,aluminum cooling system brazing furnace,Air tightness testing machine for condenser radiator,aluminum foil for radiator fin,aluminum sheet for radiator head plate,aluminum radiator components head plate,punching and shearing oil,aluminium flux.

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.What is the maximum size of the core that can be assembled by semi automatic core building machine ?

At the moment we assembled the maximum size of core is 1200*1200mm,two rows.



2.Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.



3.What’s the requirements for assembling the head plate of automatic core building machine?

The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
