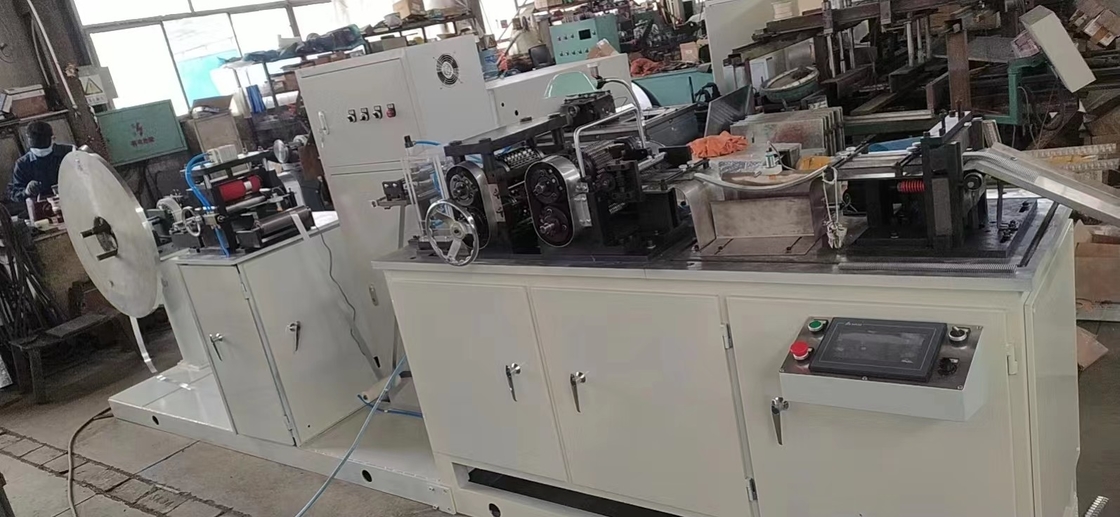

120m/min Feeding speed Radiator Fin Forming Machine 8-200mm Fin Width Fin machine
Product introductions:
120m/min Feeding speed Radiator Fin Forming Machine 8-200mm Fin Width Fin machine is used to produce radiator fins with or without windows.
The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.
Product specifications:
| Voltage, power |
220V/50Hz,2.5kw |
design style |
can customise |
| running speed |
adjustable |
Driving mode |
Servo pneumatic |
| production efficiency |
60sec. |
Fin Type: |
Radiator Fin |
| Number of preset models |
Non. |
Workstation |
1 |
| Programmable |
yes |
Machine weight |
800kg |
| shape |
unregular |
warranty |
12 months |
| after-sale service |
yes |
mould |
can customise |
| brand name |
SUNHOPE |
Fin Height: |
8mm |
| Speed: |
100 M/min |
Fin Thickness: |
0.08mm |
Product features:
1.Size can be customized
2.It can be programmed.
3.It can have shields or no shields
About us:
We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
2.Does one set of hob can use different thickness finned materials?
Yes,it can.But we don’t suggest big difference in thickness,most of the thickness of fins is 0.07-0.08mm at the moment.
